4000 Series Videokits
Surface or flush 1 and 2 button 4000 series non-coax (balanced video pair) colour videokits.
The 4000 series video entry panels include DDA compliant reassurance tones and call progress LED’s for call in progress, system busy, speak and door open.
The flexible design allows for the addition of up to a total of 4 door entry panels (with additional 506N relays) with up to 4 video handsets per call button. The system also benefits from intercommunication calls between the videophones within the same apartment or between videophones in different apartments.
The videokits are available with the choice of a 6200 series videophone with handset or a 6300 series, 6400 series or 6700 series hands free monitor. Features of both videophone and hands free monitors include an adjustable 3 level call tone, camera recall (selectable), timed privacy facility with LED indication.
Features
- Surface or flush 1 or 2 button videokit options
- 4000 series video entry panels available in a matt 316 grade stainless steel finish
- Kits available with either a 6200 series videophone, 6300 series, 6400 series or 6700 series hands free monitor
- Video entry panel with DDA compliant reassurance tones and call progress LED's
- Expandable up to 4 entrances (with additional 506N relays)
- Call a total of 4 videophones/hands free monitors off each call button
- Intercommunication between videophones in same apartment or between different apartments
Technical Details
- Number of entrances: 1 (expandable to 4 with additional 506N relays)
- No. of cores to videophone: 6 from panel, 2 from PSU
- PSU model: 850K (24Vac)
- Entry panel: 4833
- Maximum number of call buttons: 2
- Maximum No. Of videophones per call button: 4
- Relay output: C, NO and NC (inc. capacitive discharge feature)
- Compatible videophone models: 6256, 6358, 6458 or 6758
Product Variants
Surface Videokits:

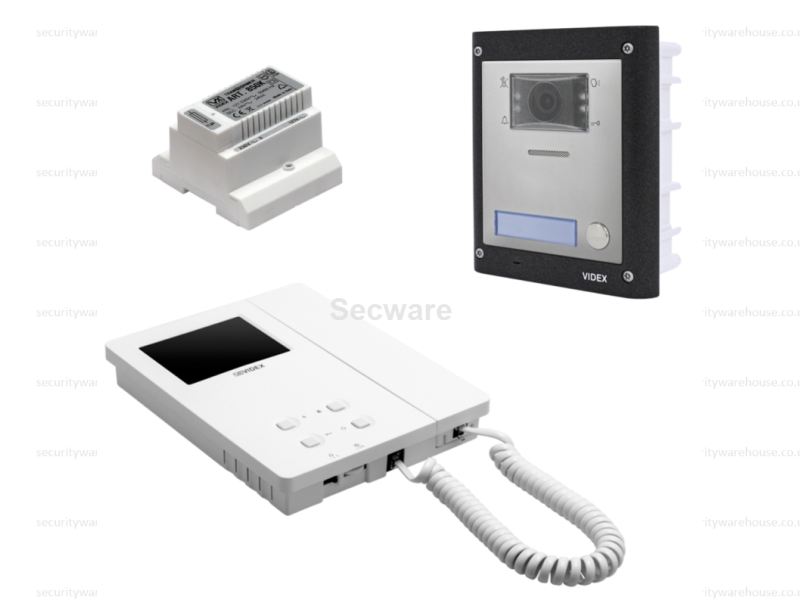

- CVK4KS – 4000 series, 1 way surface colour videokit with 6256 videophone
- CVK4KS/6358 – 4000 series, 1 way surface colour videokit with 6358 monitor
- CVK4KS/6458 – 4000 series, 1 way surface colour videokit with 6458 monitor
- CVK4KS/6758 – 4000 series, 1 way surface colour videokit with 6758 monitor
- CVK4K2S – 4000 series, 2 way surface colour videokit with 6256 videophones
- CVK4K2S/6358 – 4000 series, 2 way surface colour videokit with 6358 monitors
- CVK4K2S/6458 – 4000 series, 2 way surface colour videokit with 6458 monitors
- CVK4K2S/6758 – 4000 series, 2 way surface colour videokit with 6758 monitors
Flush Videokits:
- CVK4K – 4000 series, 1 way flush colour videokit with 6256 videophone
- CVK4K/6358 – 4000 series, 1 way flush colour videokit with 6358 monitor
- CVK4K/6458 – 4000 series, 1 way flush colour videokit with 6458 monitor
- CVK4K/6758 – 4000 series, 1 way flush colour videokit with 6758 monitor
- CVK4K2 – 4000 series, 2 way flush colour videokit with 6256 videophones
- CVK4K2/6358 – 4000 series, 2 way flush colour videokit with 6358 monitors
- CVK4K2/6458 – 4000 series, 2 way flush colour videokit with 6458 monitors
- CVK4K2/6758 – 4000 series, 2 way flush colour videokit with 6758 monitors
All the above videokits come with the appopriate 4000 series surface or flush back box and will include the appropriate number of 850K (24Vac) psu’s (one per videophone). All the above 2 way videokits come with the appropriate 316N video distribution box.
