3000 Series Audiophones (IPure System)

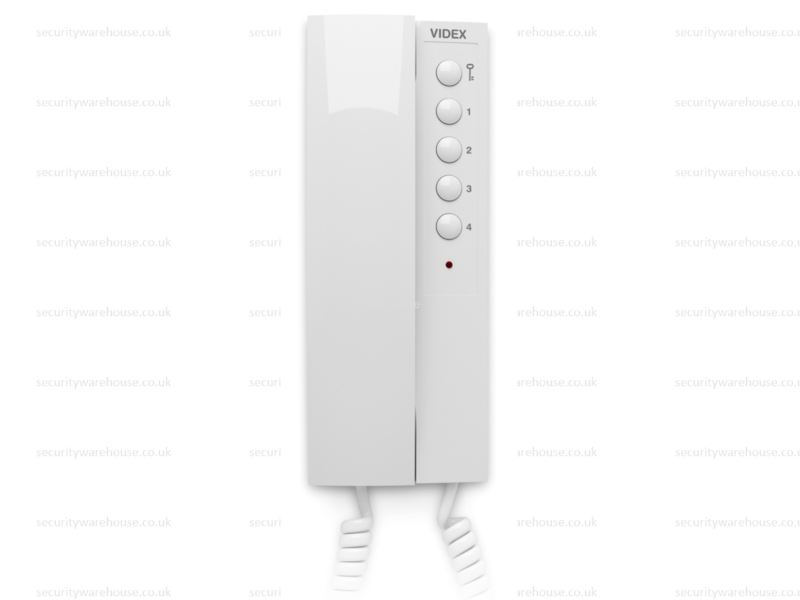

Introducing the latest 3000 series surface mount IPure system 5 button audiophone with 3 level calltone volume adjustment.
The IP audiophone is manufactured from impact resistant ABS plastics and has 5 fully programmable push buttons (programmable using the Videx IP wizard software). Other programmable features include: privacy duration time feature (with status/privacy LED), melody selection, number of rings and intercommunication call facility.
The IP audiophone is SIP compliant and has 2 active low programmable inputs. It can be powered by either 12Vdc directly using UTP cable or by using the RJ45 ethernet connection with PoE switch technology.

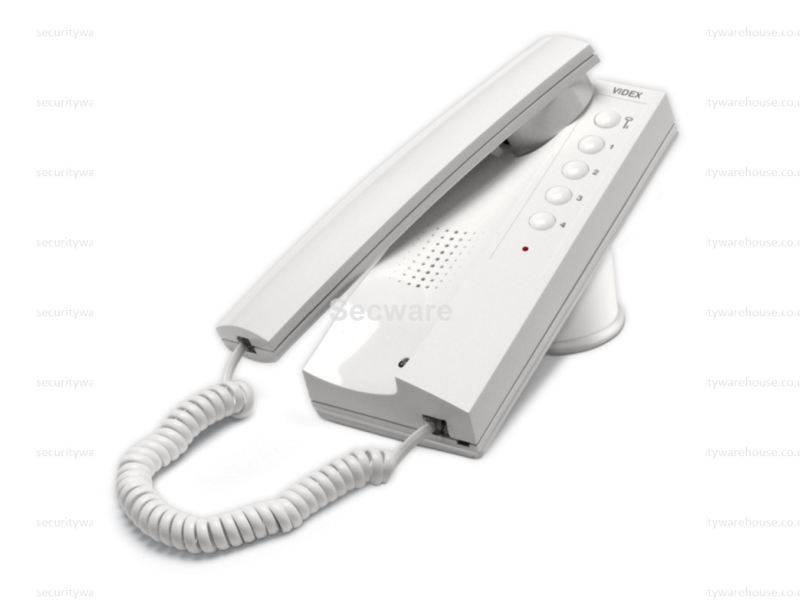

Accessories include a desk kit, 3038, for an easy and practical functional alternative to a wall mount solution.
Features
- Manufactured from white ABS impact resistant plastics
- 3 level call tone volume adjustment
- 5 fully programmable push buttons
- Intercommunication facility
- SIP compliant
- 2 active low programmable inputs
- 12Vdc powered or PoE switch
- Desk mountable using the 3038 desk kit
- All programmable functions can be programmed using the Videx IP Wizard software
- Induction coil for the hearing aid users
Technical Details
- System: IPure system
- Material: White ABS plastics
- Connection method: LAN, private network or public network (internet)
- Power suply: 12Vdc powered (via UTP cable) or PoE switch technology
- Inputs: 2 programmable active low inputs
- Call tone volume adjustment: Yes, 3 levels (low, medium and high)
- Push buttons: 5 programmable buttons
- Intercommunication facility: Yes
- Configuration: Programming and setup via IP Wizard software
- Dimensions (mm): 85 (W) x 218 (L) x 55 (D)

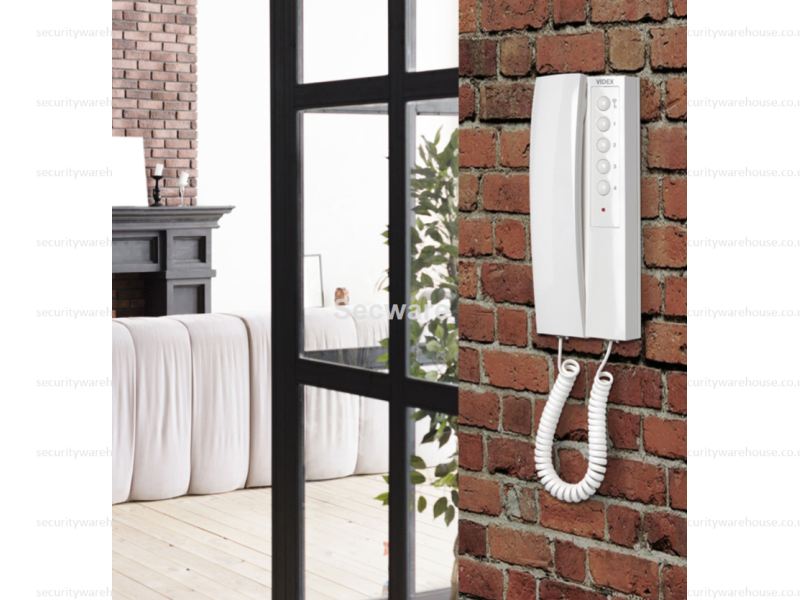

- Mounting: Surface mount (directly to the wall) or desk mount using the 3038 desk top kit
Product Variants
- 3196 – 3000 series surface mount 5 button IPure system audiophone
- 3038 – 3000 series (full base) audiophone desk kit
