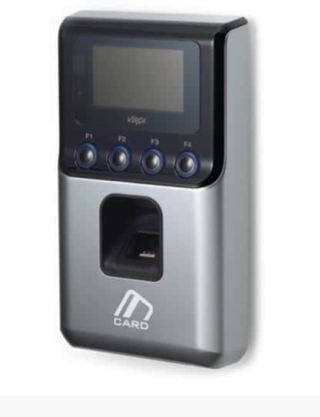

Genie Virdi Fingerprint Authentication System

OBSOLETE - No longer available

Biometric Terminal – Networkable or Standalone, 500dpi Optical Sensor, Mono LCD Display, Supports 13.56MHz Mifare Card, TCP/IP, Wiegand In & Out 2x RS485 and 2x RS232 (Not for Interconnectivity), Lock Control, 1000 Users DC12-24V, PSU Included

Key Features

Fake Fingerprint Detection (Patented)
Fast Authentication Speed
Various Authentication Methods
Communication Interface
Real-Time Monitoring
Electric Lock Control

Technical Specification

Model Number	AC2500SC
CPU	32 Bit RISC
LCD Display	128 x 64 Mono Graphic Display LCD
User Capacity	1000 Users
Log Capacity	5,000
Cards Supported	13.56MHz MiFARE Smart (Support for 1 Sam Card)
Operation Mode	Fingerprint / Card / Password
Pin Pad	No
PC Interface	TCP/IP (10M)
Communications	2 RS-232C, 1 Wiegand, 1 RS-485
PoE	No
USB Memory Slot	No
Lock Control	2 Port Control Motor Lock or 1 Port Control EM / Strike / Deadbolt Lock
Fingerprint Sensor	500 Dpi Optical Sensor
Fake Finger Detection	Yes
FRR / FAR	0.1% / 0.0001%
Power	Max DC12 ~ 24V / 450mA
Operating Environment	-20°C ~ 50°C / Lower Than 90% RH (Non-Condensing)
Dimensions (W x H x D)	97 x 170 x 40 mm
Weight	1.1Kg
