Trimec TB25SQ Fail Secure PTO Solonoid Bolt

OBSOLETE - Alternative CLICK HERE

Application

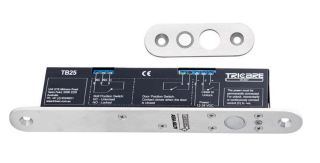

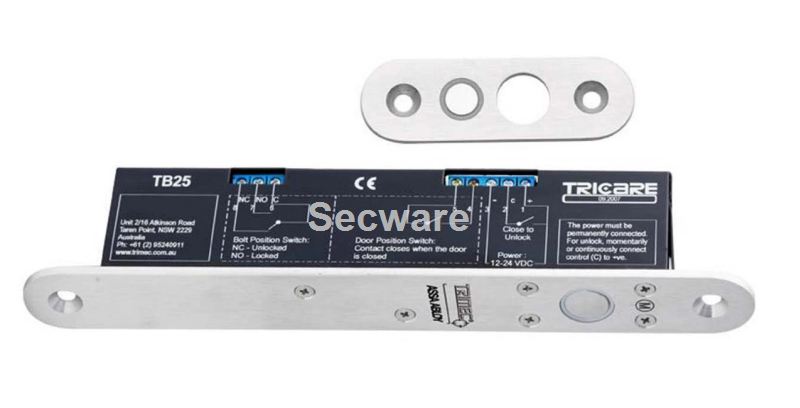

The TB25 range of drop bolts represent true engineering innovation, design excellence and the superior quality customers have come to expect and demand from Trimec®. Designed for use on swing-through, double action doors, these drop bolts are ideal for applications where an electric strike is impractical.

Specification

•     High Security. Bolt is deadlocked in the extended position
•     Bolt position monitored
•     Door position monitor with integrated magnet into the strike plate (no need to install a separate reed switch)
•     Multiple orientation, drop bolts will work horizontally or vertically
•     Power to Lock/ Power to Open
•     Continuously Rated Solenoid
•     Tamper Proof. Lock cannot be defeated by slipping a metal object between lock and striker plate
•     Intelligent Electronics. These intelligent bolts will attempt to re-close the bolt 8 times, allowing time for swing through doors to settle in the closed position
•     Thermal Protection. In the event of solenoid overheat, a thermal fuse will operate, eliminating any fire risk
•     CE marked to EMC Directive

Finish

•     Glass doors
•     Timber Doors

Standards

• Voltage     12 or 24Vdc
• Current (Start)     1100mA @ 12V, 1000mA @ 24V
• Current (Holding)     210mA @ 12V, 90mA @ 24V
• Holding Force     1000kg
• Locking Mode     PTL & PTO

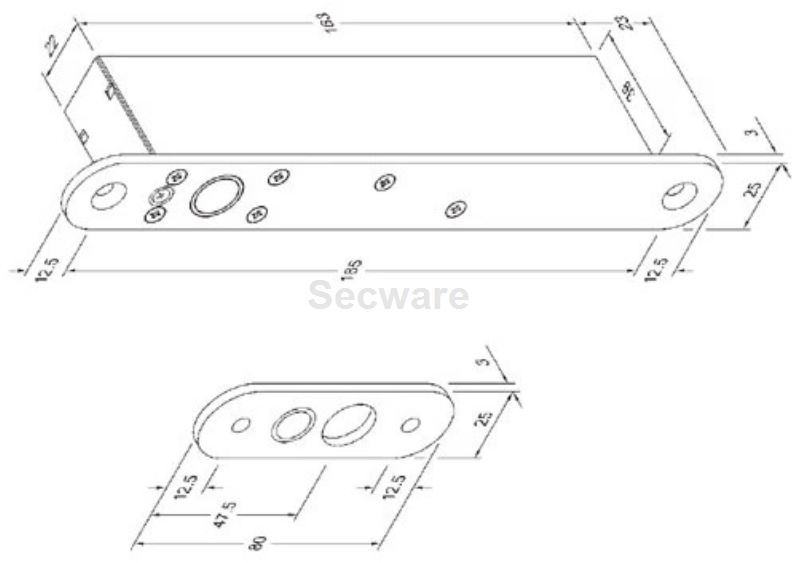

• Dimensions (Mortice)     164 x 22mm
• Bolt Length     12.7 x 16mm
• Faceplate Size     10 x 25mm
• Monitoring Contacts     Bolt & Door
