Portal Plus Proximity Readers
A range of standard EM, HID and Mifare proximity readers are available for the Portal Plus access control system. Readers are either self contained or panel mountable within the 4000 series, VR4K series, VR120 series and standard vandal resistant series.
The EM and HID range of proximity readers use 26 bit Wiegand communication protocol with EM4100 compatibility and 125kHz operating frequency. The range of Mifare proximity readers use the Wiegand communication protocoll. These readers will operate with Mifare Classic, Ultralight and Desfire compatible cards and operate at 13.56MHz frequency.
The various readers available all operate on 12Vdc supplied from the Portal Plus controller (EWSi controller) and are low current consumption proximity readers. All are programmable via the PROS CS software.
Features
- A range of EM and Mifare readers including HID compatibility readers
- Multi-protocol reader options including Clock & Data and CODIX compatibility
- Surface, flush and vandal resistant options available
- Compatible with Portal Plus or any 3rd party Wiegand controller
- Audible and visual LED status indication
- Low current consumption readers (up to 50mA max.)
- Readers available in the 4000 series, VR4K series, VR120 series and traditional vandal resistant range
Technical Details
MTPXS-EH / MTPXBK-EH / MTPXS-MF-W26 / MTPXS-MF-W34
- Material & colour – Surface moulded aluminium, silver (MTPXBK-EH moulded ABS plastics, matt black)
- IP rating – IP65
- Communication protocol (MTPXS-EH / MTPXBK-EH) – Wiegand 26 – 40 bit (default 26 bit)
- Protocol programming (MTPXS-EH) – Yes (by a series of dip-switches)
- Proximity reading type (MTPXS-EH) – EM 4002/4100 and HID (125kHz) compatible
- Communication protocol (MTPXS-MF-W26 / MTPXS-MF-W34) – Mifare Wiegand 26 / Mifare Wiegand 34
- Proximity reading type (MTPXS-MF-W26 / MTPXS-MF-W34) – Mifare Classic, Ultralight & Desfire 13.56Mhz
- Reading distance – 2 to 5cm
- Resin potted electronics – Yes
- Operating voltage – 12Vdc
- Status LED’s – “halo” tri-colour status LED indication (red, green and orange)
- Internal sounder ON/OFF – Yes
- Backlight ON/OFF – Yes
- Tamper protection – Yes
- Current Rating – 50mA max.
- Working temperature – -20°C to +50°C
- Dimensions (mm) – 92 (L) x 51 (W) x 25 (D)
Product Variants
- MINI-EH – Black, compact surface ABS multi-protocol proximity reader
- MINI-MF-W26 – Black, compact surface ABS Mifare proximity reader (Wiegand 26 bit)
- MINI-MF-W34 – Black, compact surface ABS Mifare proximity reader (Wiegand 34 bit)

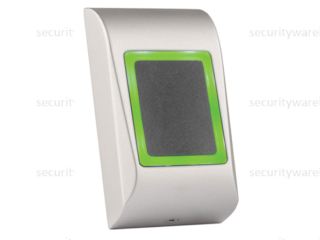

- MTPXS-EH – IP65, surface Wiegand (125kHz) proximity reader, silver
- MTPXBK-EH – IP65, surface Wiegand (125kHz) proximity reader, ABS matt black
- MTPXS-MF-W26 – IP65, surface Mifare proximity reader (Wiegand 26 bit), silver
- MTPXS-MF-W34 – IP65, surface Mifare proximity reader (Wiegand 34 bit), silver
- VPROX2-M – Vandal resistant surface multi-protocol proximity reader, matt chrome
- 4849PP – 4000 series modular proximity reader
- VR4KPPM – VR4K series module proximity reader
- VR4KEMP – VR4K series module, EM proximity reader with Wiegand output
- VR4KMFP – VR4K series module, Mifare proximity reader with Wiegand output
- XPROX – Panel mount multi-protocol proximity reader
