4000 Series Speaker/Camera Module (IP System)

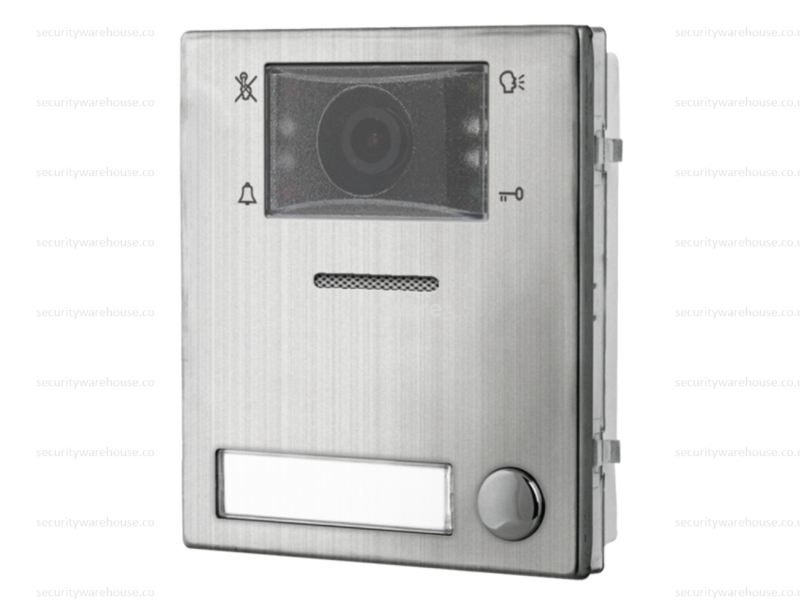

4000 series speaker/camera module, 4534X, is a combined speech amplifier and camera for the Videx IP system. The module is available with either 0, 1 or 2 buttons (however when connected to 4000 series button expansion modules via the IDC connector can have up to 42 buttons on the system) and have blue backlit name plate windows. It also includes a built-in proximity reader located behind button 1 name plate window. The total fob/card user capacity for this module is up to 10,000 user fobs/cards (programmable via the IP Wizard).
The modules are equipped with a CMOS wide angle colour camera with a vertical viewing angle of 80° and a horizontal viewing angle of 170°, complete with 4 bright white illumination LED’s. It supports H.264 video codec and supports 1280×720, 640×480, 352×288 (CIF) and 320×240 resolutions and has SIP 2.0 compatibility.
The modules also have 4 DDA compliant call progress LED’s to advise the user when the system is busy, a call is in progress, when to speak and when the door is open and includes voice annunciation and acoustic signals. Other programmable settings such as speech volume levels, door relay time, conversation time can be adjusted and setup via the IP Wizard. The modules can be powered directly with 12Vdc or via PoE.
All modules contain a speaker and fly lead with microphone which easily fits into a 4000 series frame. Modules attach to the housing frames using a simple but strong clip in system. All the modules are available in a matt 316 marine grade stainless steel finish (suffix /M) or gun metal grey (suffix /BL).
Features
- Compatible with the full range of 4000 series surface and flush back boxes
- Matt 316 marine grade stainless steel (/M) or gun metal grey (/BL) front plate finishes available
- Blue backlit name plate windows
- Wide angle CMOS colour camera with white light LED illumination
- DDA compliant call progress LED's, voice annunciation and acoustic signals
- Contains speaker and fly lead microphone (microphone easily fits within a 4000 series frame)
- Built-in proximity access reader for up to 10,000 user fobs/cards (programmable via PC based IP Wizard)
- H.254 video codec
- Supported resolutions 1280x720, 640x480, 352x288 (CIF) and 320x240
- SIP 2.0 compatible
- Powered by 12Vdc or PoE
- Proximity reader compatible with the 955 series proximity fobs & cards
Technical Details
- System: IP (IPure) system
- Power input: 12Vdc (400mA) or PoE 802.3af (class 0 – 12.95W)
- Camera: Wide angle CMOS colour camera (80° vertical and 170° horizontal viewing angles)
- Call progress indication: Yes, 4x LED’s (call, busy, speak and door open)
- LED’s: Yes, 4 white light illumination LED’s and name plate back light (blue)
- Voice annunciation & acoustic signals: Yes
- Button combinations: 0, 1 and 2 button speaker/camera modules
- Relay outputs: 2 relays (C, NO & NC)
- Built-in proximity reader: Yes with user capacity up to 10,000 user fobs/cards (all compatible with the 955 series proximity fobs & cards)
- Module setup & programming: Yes via PC based IP Wizard
- Module dimensions (mm): 103 (W) x 120 (L) x 36 (D)
Product Variants
- 4534X-0/M – 0 button speaker & colour camera module with proximity (IP System)
- 4534X-1/M – 1 button speaker & colour camera module with proximity (IP System)
- 4534X-2/M – 2 button speaker & colour camera module with proximity (IP System)
Substitute /M with /BL for gun metal grey finish e.g. 4534X-1/BL.
- 955/T – blue EM proximity fob
- 955/B – black EM proximity fob
- 955/R – red EM proximity fob
- 955/Y – yellow EM proximity fob
- 955/G – green EM proximity fob
- 955/C – credit card style EM proximity card (white)
