4000 Series Camera Modules

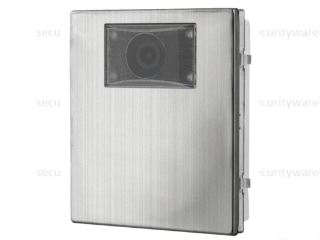

The 4000 Series camera modules are equipped with a CMOS colour camera with auto iris lens, complete with 4 white light LED’s for illumination. The cameras also have a 10° horizontal and vertical tilt adjustment (with the exception of the wide angle camera versions).
The 4830/C module can be configured to work on systems with coax video signals (V/M) or on systems using non-coax video signals (balanced, V1/V2) by setting the video mode with the use of jumpers, whilst the 4330N/C camera module is specifically designed to work with the VX2300 “true” two wire BUS system. The modules also contain a heating element to prevent the camera lens misting (anti-mist resistor).
The camera modules can be combined with 4000 speaker modules to make up a combined audio and video entry system and are compatible with the 4000 series surface and flush back boxes:
- The 4830/C camera can work in combination with the 4837, 4838 or 4204X speaker modules.
- The 4330N/C camera can directly connect to the 4303N speaker module via a CNV connector.
All the modules above are available in a matt finish 316 marine grade stainless steel (suffix /M), gun metal grey (suffix /BL) or mirror stainless steel finish (/S).
A wide angle camera option is also available by adding /W to the product code e.g. 4830/C/M/W.
Features
- CMOS colour camera with auto iris lens
- White light LED illumination
- 10° tilt angle adjustment, horizontal and vertical (standard camera versions only)
- Wide angle camera option available (suffix /W)
- Internal anti-mist resistor
- Camera Type: CMOS colour camera with auto iris lens
- LED Illumination: 4x white light LED’s
- Field of View: standard camera = 55° vertical angle and 115° horizontal angle, wide angle camera = 80° vertical angle and 170° horizontal angle
- Camera Angle Adjustment: 10° ball joint (horizontal & vertical tilt adjustment) for standard camera versions only.
- Wide Angle Option: Yes, suffix /W to product code
- Input Voltage: 14-20Vdc (4830/C)
- Input Voltage: 32-35Vdc BUS voltage via 4303N speaker module
- Output 4830/C: Coax (V/M) or Balanced (V1/V2) 1Vp-p video (selectable)
- Output 4330N/C: Direct CNV connection to 4303N speaker module
- Anti-mist Resistor: Yes (internal)
Product Variants
- 4830/C/M – 4000 series colour camera module (matt 316 finish)
- 4330N/C/M – 4000 series VX2300 colour camera module (matt 316 finish)
Substitute /M with /BL for gun metal grey finish e.g. 4330N/C/BL. Substitute /M with /S for mirror stainless steel finish e.g. 4830/C/S. For the wide angle camera option suffix /W to part code e.g. 4330N/C/M/W.
