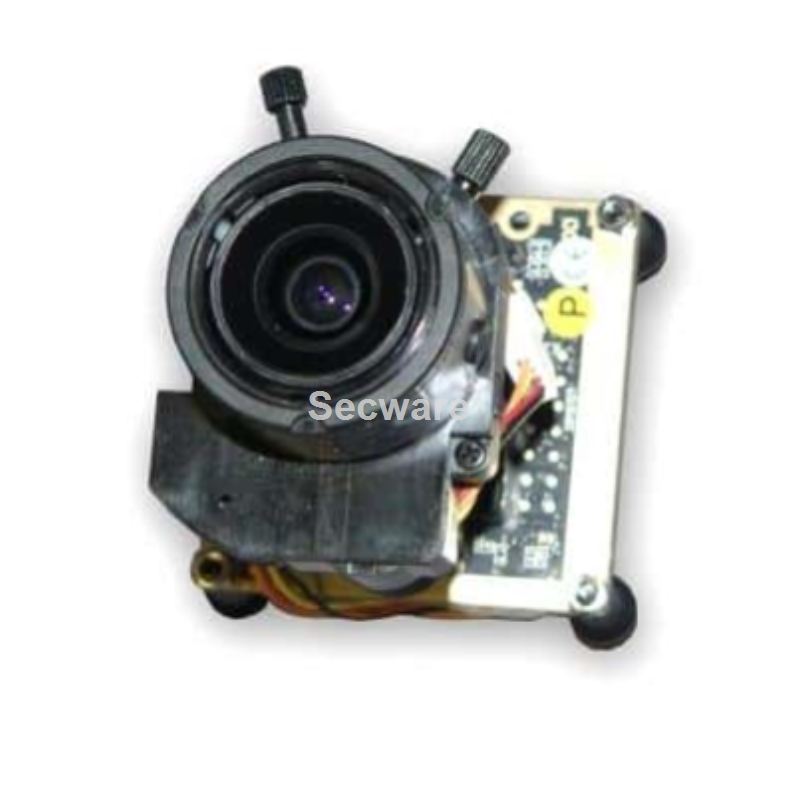

Pixim Seawolf 1/3" Digital Pixel Sensor, Digital Day/Night, Ultra High Resolution 690TVL, 2.8-10.5mm VF Lens, 3D-DNR, WDR, Sens-Up, 12 Zones for Privacy DC12V
BENEFITS OF PIXIM WDR DIGITAL IMAGING SENSOR
Pixim provides a number of technical improvements in picture quality for viewing areas of extreme dynamic lighting conditions. The Pixim technology overcomes over exposure problems against strong back-light situations. As each pixel acts as a camera, the picture taken by one pixel does not affect the picture quality captured by other pixels. Based on this technology, the camera delivers a very high quality, high resolution and very accurate picture. Facial & object recognition in a variety of light conditions such as doorways, windows, shadows, high-contrast environment and outdoors with strong light reflections are easily achievable with the Pixim powered cameras
Features:
- 1/3” Pixim Seawolf CMOS Sensor
- Ultra High Resolution, 690 TVL
- Digital Day/Night
- 3D Motion Adaptive Digital Noise Reduction
- Wide Dynamic Range (WDR)
- 2.8-10.5mm DC Al VF Lens
- O.S.D. Menu
- Selectable Gain Control
- Selectable White Balance
- Privacy Masking (12 Zones)
- 3-Axis Gimbal
Technical
| Model Number |
GC83SPXV |
| Image Sensor |
1/3 |
| Horizontal Resolution (Effective) |
690 TVL (Colour), 800 TVL (Mono) |
| Signal Processing |
17-bit Digital Signal Processing |
| Transfer Format |
Progressive with Segmented Frames |
| Sensitivity (F1.2) |
0.1 Lux (Col), 0.01 Lux (Mono) |
| Lens |
2.8-10.5mm DC Al Varifocal (F1.2) |
| Angle of View |
H: 100.8(Wide)~28.5°(Tele) / V: 73.7°(Wide)~21.4°(Tele) |
| Digital Zoom |
12 x Zoom |
| Effective Pixels (H x V) |
758 x 540 |
| Electronic Shutter Speed |
1/50~1/100,000 Sec |
| Scanning System |
2:1 Interlace |
| Synchronisation |
INT/LL Selectable |
| Frequency |
Horizontal:15.625KHz Verticle: 50.00Hz |
| Video Output |
1.0Vp-p~75Ω |
| S/N Ratio |
>50dB (AGC Off) |
| Day / Night |
COLOUR / AUTO / B&W |
| 3D-DNR |
ON / OFF |
| Sens-Up |
AUTO / OFF (Selectable limit x2 ~ x32) |
| WDR |
LOW / NORMAL / MIDDLE / HIGH (Max 120db) |
| Gain Control |
AUTO / HIGH / LOW / OFF SELECTABLE |
| White Balance |
ATW / AWB / INDOOR / OUTDOOR / MANUAL |
| Back Light Compensation |
BLC / OFF SELECTABLE |
| Motion Detection |
ON / OFF |
| Privacy Zones |
ON / OFF (12 Programmable Zones) |
| Operating Conditions |
Temperature: -10°C ~ +50°C Humidity: 30 ~ 90% RH |
| Power Supply |
DC 12V (±10%) |
| Power Consumption |
130mA |
| Dimensions (W x H) |
42 x 42 mm |
| Weight |
66g |
