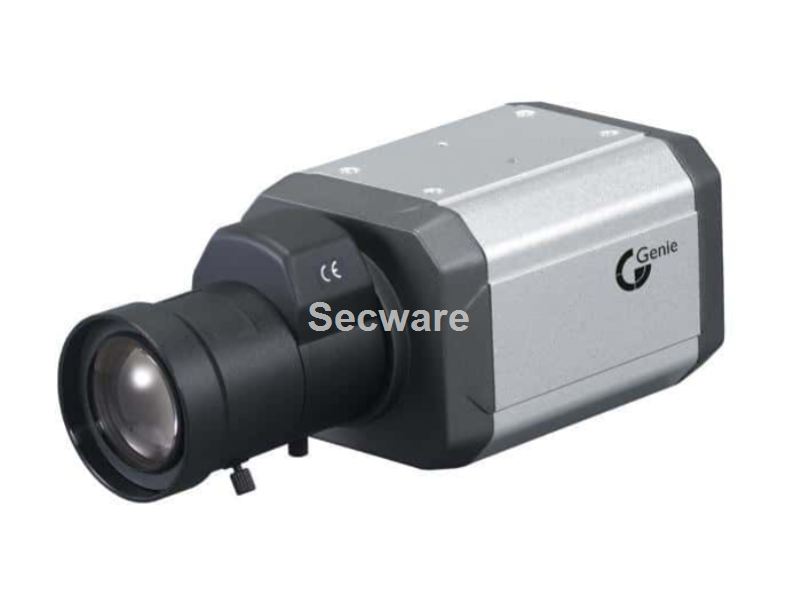

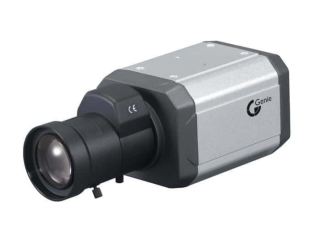

Genie Pixim Seawolf 690TVL, 12 Zone Privacy Masking

larger image

OBSOLETE - No longer available

Pixim Ultra High Resolution Digital Day/Night WDR Bodied Camera

Product Overview

Pixim Seawolf 1/3" Digital Pixel Sensor, Digital Day/Night, Ultra High Resolution 690TVL, 3D-DNR, WDR, Sens-Up, 12 Zones Privacy Masking, DC12V

Key Features:

    * 1/3” PIXIM Seawolf CMOS Sensor
    * Ultra High Resolution, 690 TVL
    * Digital Day/Night
    * 3D Motion Adaptive Digital Noise Reduction
    * Wide Dynamic Range (WDR)
    * OSD Menu
    * Selectable Gain Control
    * Selectable White Balance
    * Highlight Function
    * Privacy Masking (12 Zones)
    * Motion Detection
    * DC 12V

Technical:

Model Number	DN83SPX/12
Image Sensor	1/3'' Pixm Seawolf CMOS Sensor
Horizontal Resolution (Effective)	690 TVL (Colour), 800 TVL (Mono)
Signal Processing	17-bit Digital Signal Processing
Transfer Format	Progressive with Segmented Frames
Sensitivity (F1.2)	0.1 Lux (Col), 0.01 Lux (Mono)
Digital Zoom	4 x Zoom
Effective Pixels (H x V)	758 x 540
Electronic Shutter Speed	1/50 ~ 1/100,000 Sec
Scanning System	2:1 Interlace
S/N Ratio	>50dB
Synchronisation	INT/LL Selectable
Frequency	Horizontal: 15.625KHz Vertical: 50.00Hz
Video Output	1.0Vp-p~75Ω
Day / Night	COLOUR / AUTO / B&W
3D-DNR	OFF / LOW / MIDDLE / HIGH
Sens-Up	AUTO / OFF (Selectable Limit x2 ~ x32)
WDR	LOW / MIDDLE / HIGH / USER
OSD	Yes, Built-in
Gain Control	OFF / LOW / MIDDLE / HIGH
White Balance	ATW / AWB / INDOOR / OUTDOOR / MANUAL
Highlight Function	YES
Privacy Masking	ON/OFF (12 Programmable Zones)
Motion Detection	ON / OFF
Flip	Horizontal / Vertical
UTP	NO
Communication	N/A
Operating Conditions	Temperature: -10°C ~ +50°C, Humidity: 95% RH
Power Supply	DC 12V
Power Consumption	160mA
Dimensions (W x H x D)	63.7 x 64 x 87.4 mm
Weight	350g
