Genie 1/3 AHD 2Mp V/R Corner Mount Tdn 3D-Dnr/D-Wdr 29Mm 30 Leds c/w Mic

The Genie GAHDCMIR is a corner mount IR camera with x30 covert 940nm invisible IR LED’s. It is vandal resistant, has a 2MP resolution, and is able to see up to 10m IR distance in ideal conditions.

1/2.8” Sony Starvis CMOS sensor
Full HD Mega Pixel (1080p)
4-in-1 (AHD, TVI, CVI, CVBS)
30 covert 940nm invisible IR LED’s for discreet monitoring in the dark
2.8mm MP lens
Vandal resistant metal front panel
Auto compensation and Long range transmission
3D DNR (Digital Noise Reduction)
UTC (OSD via coaxial cable)
Sens-Up
True Day & Night function with ICR mechanism
D-WDR (Digital Wide Dynamic Range)
Live defect detection and correction
Built-in OSD and one-way audio
DC12V
NDAA compliant

Weight	0.4 kg
Image Sensor	1/2.8” Sony Starvis CMOS image sensor
Active Pixel	1920 (H) x 1080 (V)
Resolution	1080p @ 30fps / 1080p @ 25fps
Minimum Illumination	Colour : 0.001 Lux (F=1.2) B&W : 0.000 Lux (IR on)
Lens	2.8mm MP lens
Shutter Speed	Auto / Manual (1/50(60) ~ 1/50,000 sec)
S / N Ratio	More than 50dB (AGC off)
Scanning System	Progressive
Video Output	Universal AHD, CVI, TVI : 1080p, Analogue: NTSC / PAL CVBS
AGC	Off / 0-15
D-WDR	Off / 0~8
Sens-Up	Off x2 – x30
Backlight	Off / BLC / HSBLC
DNR	Off / Low / Middle / High
Privacy Mask	4 Masks
Motion Detection	Off / On
Day & Night	Auto / Colour / B&W / Extern
Defog	Off/Auto
Brightness	0 – 100
Sharpness	0 -10 steps
Mirror	Off / Mirror / V-Flip / Rotate
White Balance	ATW, AWC, Indoor, Outdoor, Manual, AWB
Audio	One-way built-in
IR	940nm invisible IR
Languages	13 languages
Power Supply	DC12V ±10%
Power Consumption	Max. 3.5 Watt at IR on
Operating Conditions	Temperature: – 10°C ~ 50°C, Humidity: 10% ~ 85%

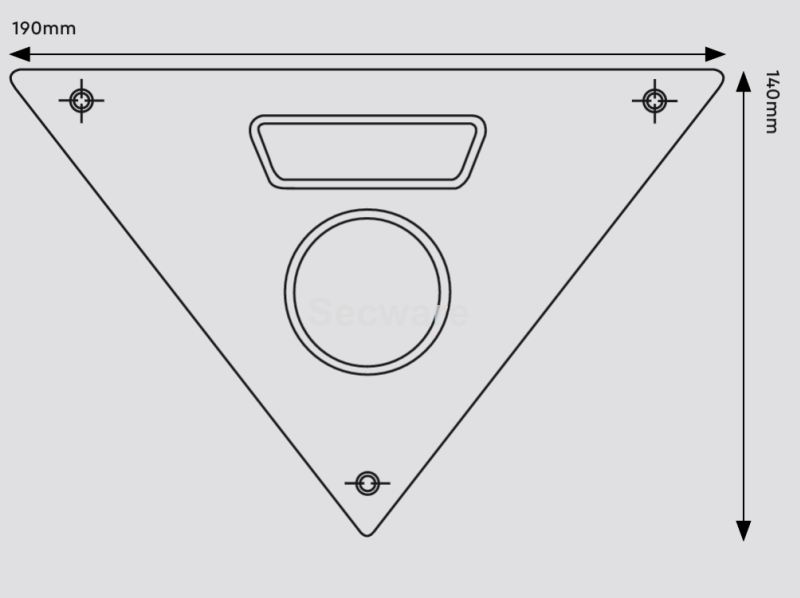

Dimensions	190 x 140 x 42.3 mm
Weight	390g
