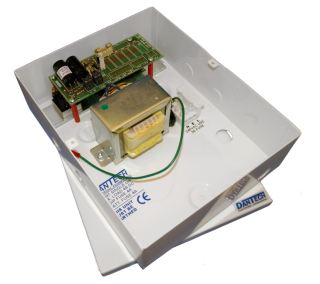

Dantech 12V 4A DC steel cased power supply with integrated ups

  • Single 4A 12V DC fused output

  • Integrated UPS battery back-up function

  • Mild steel powder-coated enclosures

  • Includes a spares-bag mounting kit

  • Input 230V AC @ 50Hz (+/- 10%)

This simple range of multi-purpose metal-cased power supplies provides 4A of 13.7V DC via individually fused outputs, for 12V DC equipment. The enclosure can also house a 7Ah VRLA battery, which the power supply will automatically charge while mains power is present, and use in the event of a mains power loss.

Manufactured and tested in Britain, this range of power supplies has a five-year warranty, allowing installers to fit and forget. It is ideal for where high reliability is required and where companies may have long service or maintenance contracts. Typical uses include powering door access controllers, electronic door releases, magnetic locks and CCTV cameras.

Integrated UPS battery back-up function

A 7Ah VRLA battery can be placed in the mild steel enclosure and connected to the battery terminals of the PCB. This power supply will automatically float-charge the battery to capacity, providing continuous uninterrupted power from the battery if mains power is unavailable.

Batteries are not included. This unit can be used with or without batteries fitted.

Mild steel powder-coated enclosures

Precision-made from mild steel and powder-coated white for an easy-clean, durable finish, this enclosure is ideal for wall mounting. The enclosure includes 'knock-outs' for cable gland entries.

Includes a spares-bag mounting kit

Each unit includes a spares-bag for the installation engineer. This kit contains useful items, such as cable glands, wall plugs and fixing screws.

Input 230V AC @ 50Hz (+/- 10%)

Designed to operate on UK standard mains power, this unit will accept a mains-powered input of 230V AC @ 50Hz (+/- 10%)

Output
Voltage 12V DC (13.7V)
Current 1x 4A
Connection type PCB terminal block (2.5mm²)
Fused 20 x 5mm 4A quick-blow glass fuse
Power output indication none
Input
Voltage 230V AC @ 50Hz (+/- 10%)
Power consumption < 72VA
Connection type 10mm² internal terminal block (3 x 1.5mm² or 2 x 2.5mm²)
Fused 3A Mains fuse (BS1362)
Power indication LED Indicator
Environmental
Operating temperature -10°C to +40°C
Storage temperature -20°C to +50°C
Operating relative humidity Maximum 95% non-condensing
Ingress protection IP20
Dimensions:
Product
Width 210mm
Height 260mm
Depth 80mm
Weight < 3.63Kg
Enclosure material Mild steel
Finish Powder coated RAL9016 (white)
Shipping packaging
Width 220mm
Height 270mm
Depth 90mm
Weight *including product < 3.7Kg
Packaging material Corrugated cardboard
Other
Estimated operations before failure (MTBF) 50,000 hours
Recommended battery size 7Ah
  • Model: DA391
  • Shipping Weight: 1.5 kgs
  • Manufactured by: Dantech
