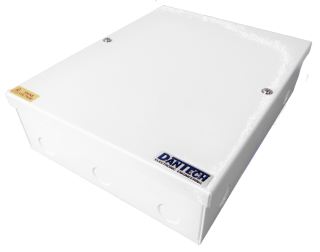

Dantech Indoor 24V 8A Ac 8 Output Steel-Cased Power Supplies With 230V Input

  • 8 individually fused outputs

  • Mild steel powder-coated enclosures

  • Includes a spares-bag mounting kit

  • 230V AC input

These multi-purpose power supplies provides 24V AC via individually fused outputs. The DA389 is available in a mild steel or ABS weather-resistant enclosure. This power supply is also available without an enclosure as a chassis mount product on a mild steel plate.

Manufactured and tested in Britain, this range of power supplies has a five-year warranty, allowing installers to fit and forget. It is ideal for where high reliability is required and where companies may have long service or maintenance contracts.

Typical uses include powering CCTV cameras and camera housing heaters.

Inclusive Spares & Mounting Kit fixing kit

  • Mains cable gland

  • Wall plugs and fixing screws

  • Open 20mm grommet

Output



Outputs

8

Voltage

24V AC

Current

8A

Connection type

PCB terminal block (2.5mm²)

Fused

20 x 5mm quick-blow glass fuse

Power on indication

none

8A Maximum total load



Input



Voltage

230V AC @ 50Hz (+/- 10%)

Power consumption

< 125VA

Connection type

10mm² internal terminal block (3 x 1.5mm² or 2 x 2.5mm²)

Fused

3A Mains fuse (BS1362)

Power indication

none

Environmental



Operating temperature

-10°C to +40°C

Storage temperature

-20°C to +50°C

Operating relative humidity

Maximum 95% non-condensing

Ingress protection

IP20

Dimensions:



Product



Width

210mm

Height

260mm

Depth

80mm

Weight

< 4.1Kg

Enclosure material

Mild steel

Finish

Powder coated RAL9016 (white)

Shipping packaging



Width

220mm

Height

270mm

Depth

90mm

Weight *including product

< 4.3Kg

Packaging material

Corrugated cardboard



  • Model: DA389-230V-8
  • Shipping Weight: 2 kgs
  • Manufactured by: Dantech
Ask a Question

£67.50 Ex VAT

Add to Cart:

Manufacturer Info

datasheet
