Genie Dc12v 1A Regulated Switch Mode Power Supply Unit

The Genie PSU1SM is an ‘in-line’ switch mode power supply unit. Whilst available for use in many varied applications, it is proven to be most popular for low voltage CCTV cameras.

The PSU1SM is a light weight yet sturdy unit and provides a ‘regulated’ DC12V 1Amp output, perfect for a CCTV camera.

Short circuit Protection
Over current protection
RoHs Compliance

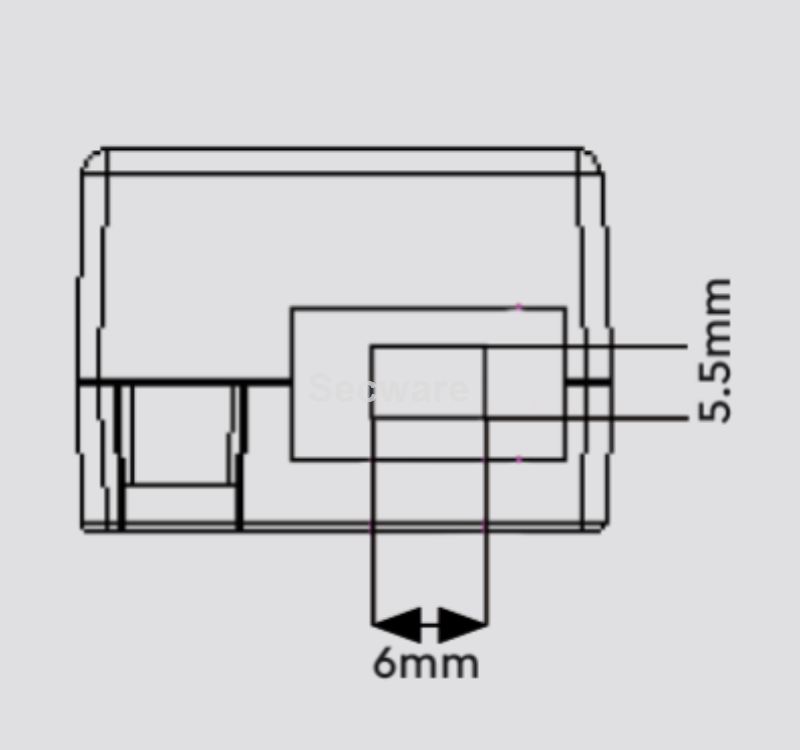

2.1mm DC Power Jack connector
Integrated mounting lugs
Compact design
No 3-pin plug supplied

Weight	0.12 kg
Output Current	1 Amp
Output Voltage	DC12V
Load Regulation	±5%
Rated Input Voltage Range	90VAC – 240VAC
Frequency Range	47Hz – 63Hz
Working Temperature	0°C~40°C
Working Humidity	10%RH – 90%RH
EMC Standard	EN62368
Dimensions	117 x 150 x 175 cm
