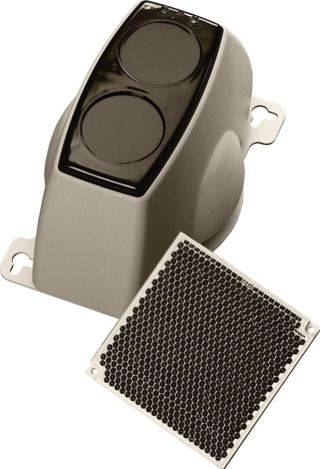

Apollo XP95 Reflective Beam Detector 5-50m

The XP95 Reflective Beam Detector differs from a traditional beam detector in that it is a single unit which houses a transmitter, a receiver and the control electronics.

  • Loop-powered
  • Compatible with Discovery and XP95 protocols
  • Incorporates a short-circuit isolator
  • Automatic drift compensation
  • Automatic reset following alarm or fault condition
Warranty 10 year
Applications
  • Churches
  • Offices
  • Warehouses
Operating distance (max) 50m
Operating distance (min) 5m
Operating distance 5 to 50m
Alarm threshold 25% 2.5db
Alarm threshold 35% 3.74db
Alarm threshold 50% 6.02db
Colour Grey
Weight 670g
Materials housing ABS
Product length 210mm
Product width 130mm
Product depth 120mm
Product length 8.27in
Product width 5.12in
Product depth 4.72in
Approvals CPD
Supply voltage (max) 28V dc
Supply voltage (min) 17V dc
Supply voltage (Vmin-Vmax) 17 to 28V dc
Loop powered Yes
Humidity (max) 93% RH
Humidity (min) 0% RH
Humidity Note no condensation or icing
Humidity 0% to 93% (no condensation or icing)
Operating temperature -20 to 55°C
Operating temperature (max) 55°C
Operating temperature (min) -20°C
IP rating Value IP50
Operating temperature -4 to 131°F
Operating temperature (max) 131°F
Operating temperature (min) -4°F



  • Model: 55000-268APO
  • Shipping Weight: 1 kgs
  • Manufactured by: Apollo
