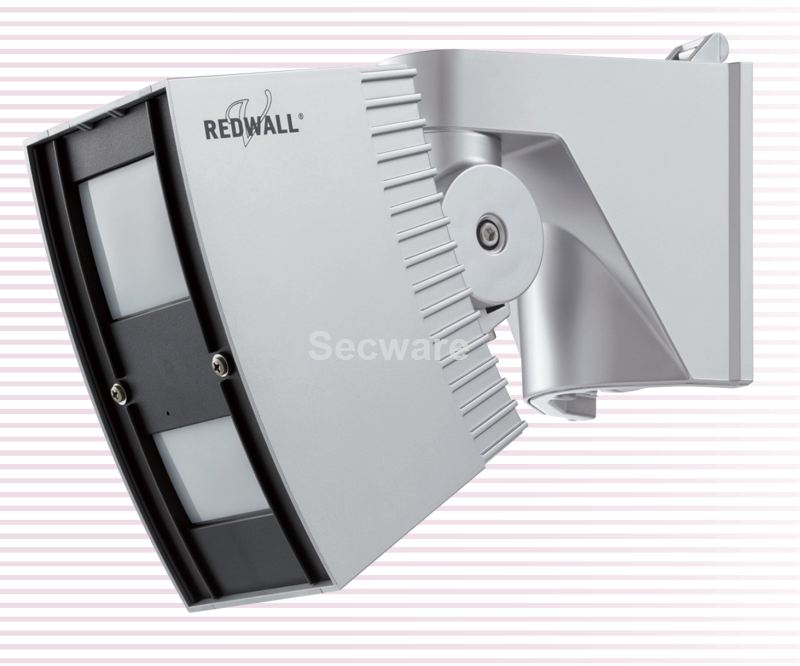

Optex Redwall-V outdoor detector 30mx20m with 6x9m creep zone

Description

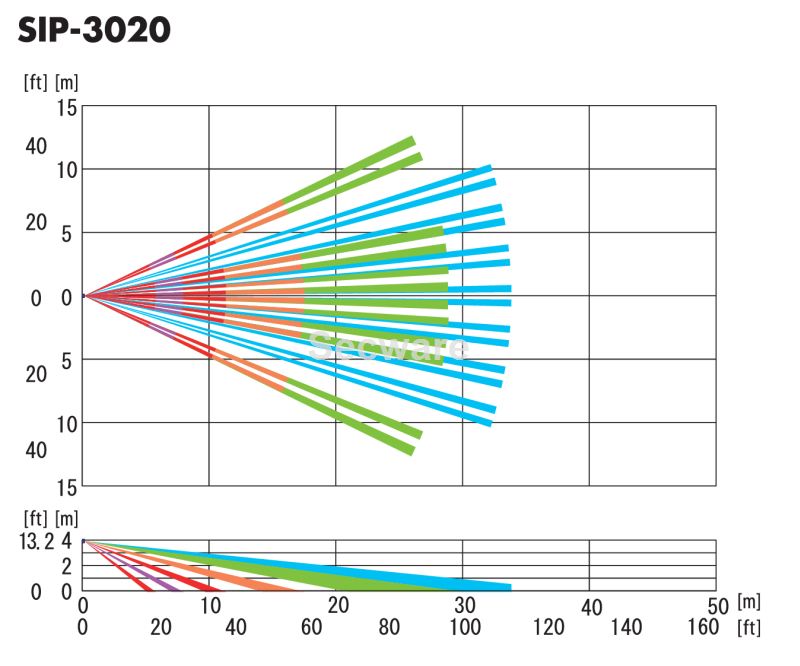

Outdoor PIR detector with creep zone,30mx20m coverage (main area) and 6x9m coverage (creep zone), designed to trigger video transmission systems and PTZ camera control.
Our detectors with creep zone provide two independant detection areas in one device. T

Features

  • 30mx20m detection coverage
  • 2 in one detectors with an independant creep zone sensor unit to cover the area between the detector and the buidling
  • intelligent PIR detection system
  • automatic sensitivity management to ambient temperature and light
  • advanced detection algorithm
  • three dual pyro-elements with patented Double Conductive Shielding
  • anti-vandalism functions including anti-masking and anti-rotation function with 3-axis accelerometer
  • 2.3m to 4m mounting height
  • independant sensitivity for creep/ near and far detection zones
  • detection logic selector
  • detection range selector
  • independant N.C. and N.O. outputs
  • adjustable alarm interval time
  • BS8418 compliant (UK)
  • Model: SIP-3020/5
  • Shipping Weight: 4 kgs
  • Manufactured by: Optex
