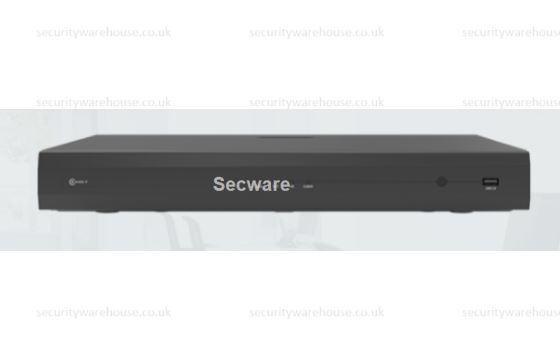

ESP IP PoE 8MP 16 Channel 8TB NVR Black

ESP IP PoE 8MP 16 Channel 8TB NVR Black



Key Features

  • HD Resolution Recording
  • H.265 Video Compression for Efficient Storage
  • Intelligent Features such as Line Cross Detection and Perimeter Intrusion Detection
  • Playback/Record/Remote View Simultaneously
  • Continuous/Scheduled/Motion Detection/Intelligent Record Modes
  • Remote Monitoring VIA APP
  • HDMI Output up to 4K
  • USB Backup for Evidence Transfer
  • Pre-Installed Surveillance Hard Drive
  • Up to 250m Cable Length per Channel



Technical Specification

Incoming Bandwidth160Mbps
Outgoing Bandwidth64Mbps
PoE Ports16CH (<250 Meters per Channel)
Video Input16CH
Audio Output1CH
Display Output1 x HDMI, 1 x VGA
Display Split1/4/6/8/9/16/25/36
Display Resolution3840X2160 @30 (HDMI Only), 1920X1080@60, 1920X1080@50, 1600X1200@60, 1280X1024@60, 1280X720@60, 1024X768@60
CompressionH.265/H.264
Recording ResolutionUp to 8MP
Liveview/Playback Resolution8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Decoding Capability2 x 4K@30, 4x 4MP@30, 5 x 3MP@30, 8 x 1080P@30, 16 x 720P@30
Recording ModeManual/Motion Detection/Schedule
Backup ModeNetwork/2 x USB2.0
EthernetRJ-45 port (100/1000M)
Network FunctionsTCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP
Network MonitoringWeb browser, Client Software, Android & IOS
Internal HDD8TB HDD
NVR Power Consumption<10W (without hard disk)
Power Input100 - 240V AC (C13)
PoE TypeIEEE802af/at
Operation Condition-10ºC – +55ºC
Dimensions380x315x53mm



  • Model: HC816R8TB
  • Shipping Weight: 2 kgs
  • Manufactured by: ESP
Ask a Question

£960.98 Ex VAT

Add to Cart:

Manufacturer Info

datasheet
