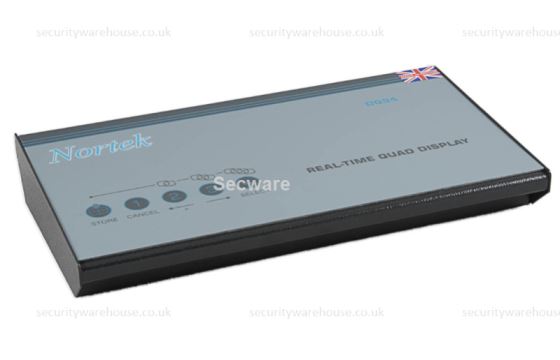

The Nortek DQ94 real-time colour quad is presented as a desktop unit with loop through connections to offer not only a stand alone quad function to display four cameras simultaneously on a CCTV monitor but also to provide an auxiliary display in conjunction with multiplexers or PC based CCTV systems.
The DQ94 will accept up to four non-synchronous video inputs and offers a choice of live displays to suit most applications for 4, 3 or even 2 cameras all with full-screen capacity. The on-screen menu is easy to follow and provides variable alarm alert and auxiliary sequence periods, audible alert on/off, flashing borders (in alarm state) and numeric camera identifier on/off.
A video switcher may be connected to either video input allowing the operator to constantly monitor one camera whilst switching through the remaining cameras in the system. An alarm input is provided which, when activated, will cause the alarmed cameras to be presented as the main image.
Key features
- Displays up to 4 cameras simultaneously
- Real-time
- Colour
- No genlock required
- 4 alarm inputs

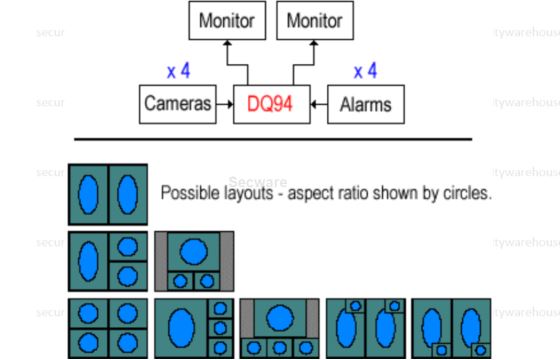

- Various image layouts are possible
Technical Specification
| Camera Inputs |
4; loop-through for each; jumpers for 75Ω terminators |
| Video Outputs |
2 |
| Format |
composite 625-line PAL video, 75Ω terminated, 1V |
| Connectors |
10 x BNC |
| Basic Behaviour |
full-screen / split-screen selected via keyboard |
| Configurable Behaviour |
full-screen on alarm, or … split-screen on alarm, or … ignore alarms |
| Auxiliary Video Output |
permanent split-screen, or … normally split-screen, but full-screen on alarm, or … permanent full-screen sequencing (for a spot monitor) |
| Keys |
5; tactile switches flush with panel; panel covered with a membrane |
| Alarm Inputs |
4; programmable as either ‘all N/O’ or ‘all N/C’ |
| Alert Period |
programmable - from 4 seconds up to 2 minutes |
| Alert Tone |
can be silenced |
| Alert Relay |
single-pole changeover; contacts are floating; max. ratings: 24V, 200mA, 2W |
| Connector |
RJ-45 connector |
| Supply Requirements |
12V; < 5W |
| Power Connector |
D.C. Socket 2.1mm |
| Power Adapter Input |
230Vac +/- 10%; 50Hz |
| Power Adapter Output |
12Vdc @ 500mA; unregulated; class II |
| Dimensions (L x D x H) |
254 x 150 x 43 (mm) |
