Genie 4In1 HD Over Coax Video Modem Kit 1X Video+1X Dc24v Power+ Rs485

The VDS6701 is a coaxial video modem kit that transmits AHD, TVI, CVI and CVBS signals, RS422/RS485 and a DC24V power output over a single coaxial cable. The VDS6701 consists of a sender unit and a viewer unit that offers a high performance solution with a compact size and weight.

Transmits video, RS422 / RS485 & DC24V
Real-time transmission up to 500 metres (no DC power)

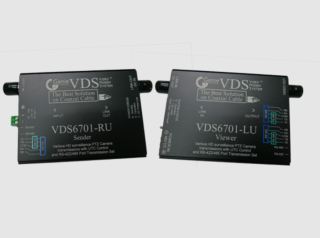

Consists of sender unit & viewer unit
LED Indicators on both units to display status
Built-in transient protection
Compact size and weight

Sender, VDS6701-RU	(Remote Unit)
DC Power Output Capability	DC24V, 1.25A
RS-422/485 Data Rate	600 bps to 64 Kbps
Video Signal Input	BNC Socket
RS-422/485 Port	Terminal Block, 2.54 mm. Pitch, 5 Pin
Coaxial Cable Link Out (w/ DC in):	BNC Socket
Viewer, VDS6701-LU	(Local Unit)
Video Signal Input Level	1.0 Vpp
Video Signal Input Impedance	75 ohms
Bandwidth of Standard Definition Video Signal	5.5 MHz (CVBS)
Bandwidth of High Definition Video Signal	27 MHz (AHD / TVI / CVI)
S/N Ratio of Video Signal	46 dB
DC Power Input	48V, 1.25A (60 Watts)
RS422/485 Data Rate	600 bps to 64 Kbps
Coaxial Cable Link In (w/ DC out)	BNC Socket
Video Output	BNC Socket
RS422/485 Port	Terminal Block, 2.54 mm Pitch, 5 Pin (2 Sets)
Dimension	100.0 mm (L) x 75.0 mm (W) x 25.0 mm (H)
Net Weight	210 gm
