*** REDUCED DUE TO WRITING ON OUTER BOX***
4000 Series Flush Frames
Flush series frames for the 4000 series modules are manufactured from one piece die cast alloy which provides substantial strength to the door station. Modules are simply attached to the frame using a strong clip in system. Modules are then held securely by inserting clip in brackets. The frames are hinged to allow the installer to have both hands free when making connections and alignments.
Flush frames are available in 3 different sizes, 1, 2 and 3 module and can be combined to house more modules if required.
Torx pin security screws are used to attach the front frame to the flush mount ABS back box. Frames are available in a “gun metal” grey finish.
All flush frames and back boxes are compatible with the 4000 series flush mount rainshields.
Features
- Flush frames available to house 1, 2 and 3 modules
- Flush support frame available in a "gun metal" grey finish
- Combine flush back boxes for larger requirements
- Compatible with the 4000 series flush rainshields
- 4852 front support frame dimensions (mm): 135 (W) x 280 (H) x 16 (D)
Product Variants
- 4851 – 1 module back box (gun metal grey)

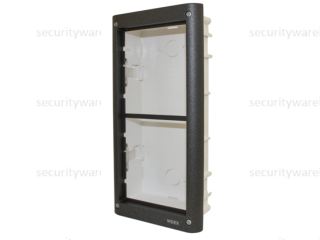

- 4852 – 2 module back box (gun metal grey)
- 4853 – 3 module back box (gun metal grey)
