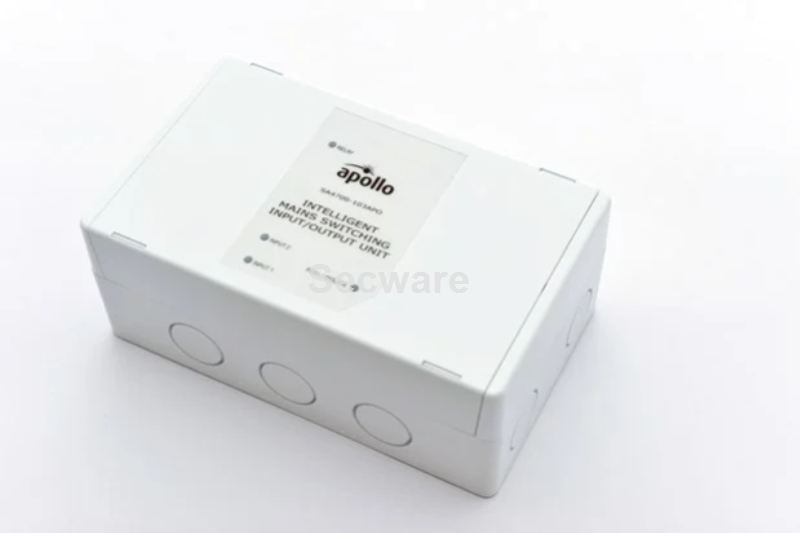

The Intelligent Input/Output Module is used to monitor two single pole, volt free contact inputs and control mains switching relay output contacts.
- EN 54-17 & EN 54-18 Certified
- Two input channels
- Meets BS 7273-4 failsafe requirements
- Ergonomic design for ease of wiring and faster installation
- Suitable for semi flush or surface mounting
- XP95, Discovery and CoreProtocol compatible
| Warranty |
10 year |
| Colour |
White |
| Weight |
301g |
| Product length |
60mm |
| Product width |
150mm |
| Product depth |
90mm |
| Product length |
2.36in |
| Product width |
5.91in |
| Product depth |
3.54in |
| Approvals |
- FG
- LPCB
- SBSC
- BOSEC
- VdS
- CPR
|
| Humidity |
0% to 95% (no condensation or icing) |
| Humidity Note |
no condensation or icing |
| Humidity (max) |
95% RH |
| Humidity (min) |
0% RH |
| Operating temperature |
-40 to 70°C |
| Operating temperature (max) |
70°C |
| Operating temperature (min) |
-40°C |
| IP rating Value |
IP54 |
| Operating temperature |
-40 to 158°F |
| Operating temperature (max) |
158°F |
| Operating temperature (min) |
-40°F |
Previously Part number 55000-875
