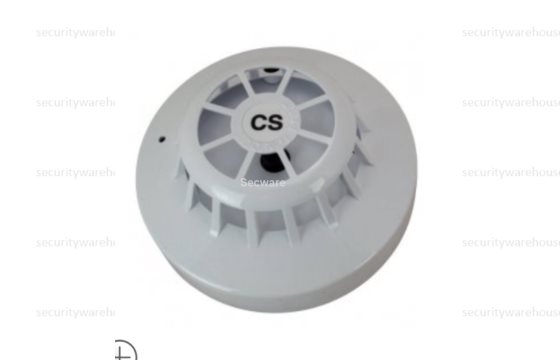

Apollo High Temp CS Heat Detector

Heat Detectors are classified according to the requirements of EN54, part 5. The AlarmSense range includes one rate-of-rise heat detector and one static (fixed temperature) detector.



Key Features

  • Can be used for applications where smoke detectors are unsuitable
  • Ideal environments that are dirty or smoky under normal conditions
  • 360°C visibility of LEDs
  • Reduction of false alarms
  • Quick and simple installation



Technical Specification

Operating voltage range9-33V
Quiescent current at 15V< 50 �A
Detection principleHeat sensitive resistance using a
single NTC thermistor
Sampling frequencyOnce every four seconds
Supply wiringTwo wire supply, polarity insensitive
Maximum reset voltage2V
Reset time1 sec
Max supply interruption time40 ms
Weight80 g detector
IP RatingDesigned to IP44



  • Model: 55000-193APO
  • Shipping Weight: 0.5 kgs
  • Manufactured by: Apollo
