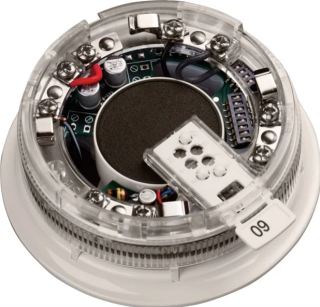

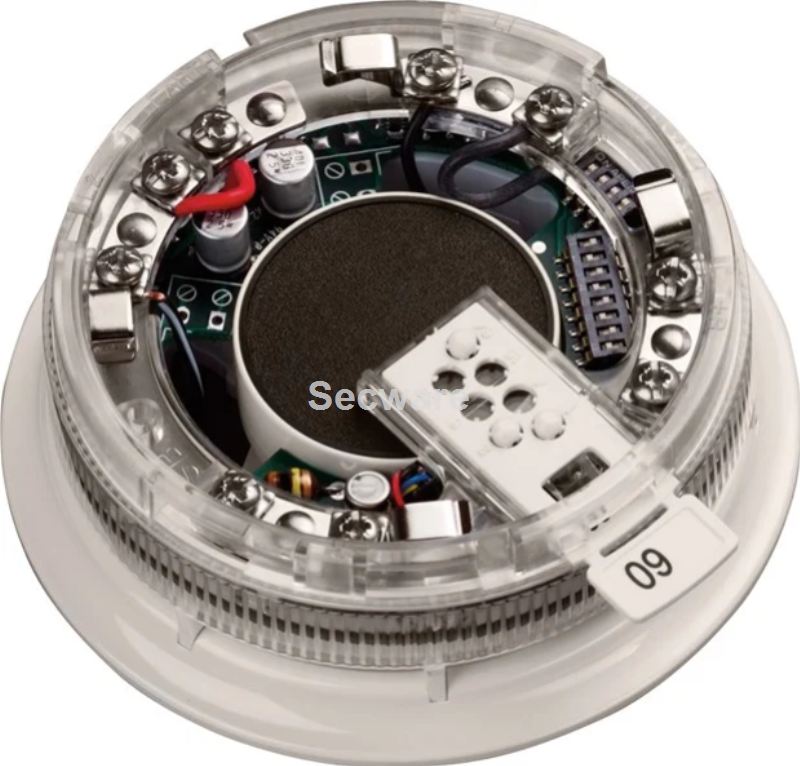

Apollo Xp95 Sounder Vid Base (Red Flash) - Isolating

XP95 Sounder Visual Indicator Base with integral isolated mounting base. Designed for indoor use.

Warranty	10 year
Flash rate	1Hz
Maximum sound output tone	91dB (A)
Selectable volume(s)	55–75dB (A) 75–91dB (A)
Tone(s)	2
Colour	White
Finish	Semi-gloss
Weight	0.35lbs
Materials housing	Polycarbonate
Product depth	38mm
Product diameter	115mm
Weight	160g
Product depth	1.5in
Product diameter	4.53in
Standards	EN 54-3 EN 54-17
Approvals	FG CPR
Terminal functions L2	+L2 Loop in & out positive, double terminal
Terminal functions L1 in	-L1 in Loop in & out, double terminal
Terminal functions +R	+R Remote indicator positive connection
Terminal functions -R	-R Remote indicator negative connection
Polarity	L1 & L2 are polarity sensitive
Battery powered	No
Protocol voltage	5 to 9V peak to peak
Protocol voltage (max)	9V
Protocol voltage (min)	5V
Power-up surge current	1.2mA
Maximum power-up time	<1 second
Quiescent current	300μA
Quiescent current tested at	24V dc
Supply voltage (min)	17V dc
Supply voltage (max)	28V dc
Supply voltage (Vmin-Vmax)	17 to 28V dc
Loop powered	Yes
Storage temperature (min)	-20°C
Storage temperature (max)	60°C
Storage temperature	-20 to 60°C
Humidity (max)	95% RH
Humidity (min)	0% RH
Humidity	0% to 95% (no condensation or icing)
Humidity Note	no condensation or icing
Operating temperature (max)	60°C
Operating temperature (min)	-20°C
Operating temperature	-20 to 60°C
IP rating Value	IP21C
Operating temperature	-4 to 140°F
Operating temperature (max)	140°F
Operating temperature (min)	-4°F
