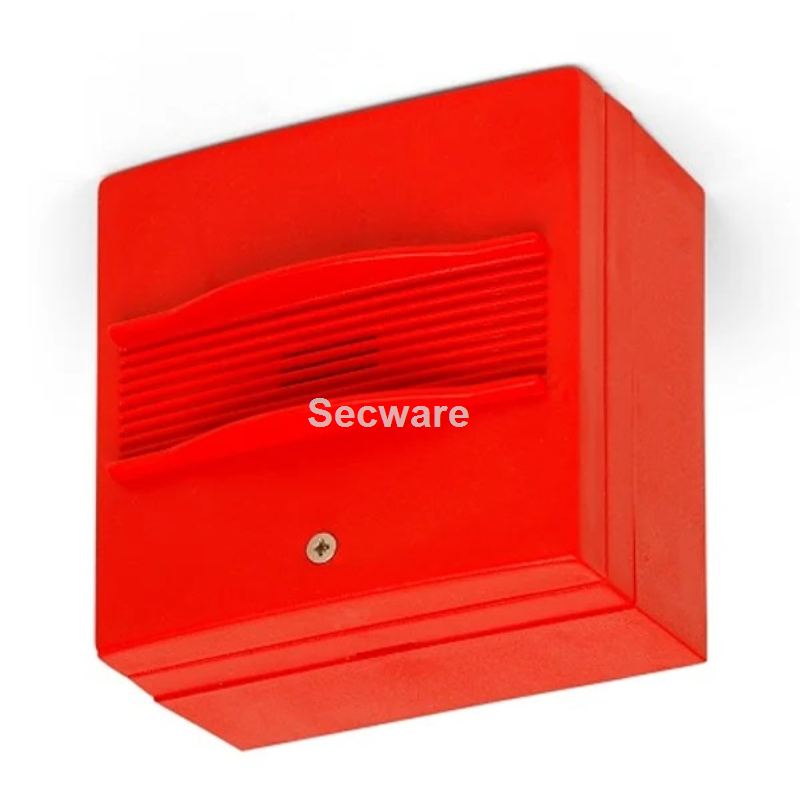

The Addressable loop Soundpoint Sounder is a compact ‘bed head’ style sounder that has the option of being flush fitted if required.
The device has been designed to fit a standard UK single gang deep (47mm min) back box.
The device is fitted with an integral sounder capable of providing one of 7 different tones and operating at 65, 80 or 85dB(A) dependant on programming.
Short circuit isolators are also built into the device in order to protect the system in the event of a cable fault.
This sounder is compatible with Fike’s SITA200plus, Duonet and Quadnet intelligent control panels.
Its operating parameters are configured using the panel’s programming software and are stored within the Flash memory in the device.
This on-board intelligence allows each device to report and respond directly to the control panel without having to wait until it is polled.
This enhanced digital protocol means less information is needed to be sent between the device and the host control panel, resulting in faster, more reliable communication.
| Dimensions |
Width x Height: 89mm x 89mm
Depth: Standard inc base 62mm Depth:
Flush mounted 34mm
|
| Operating Temperature |
-10°C to +50°C. |
| Voltage Range |
24V to 42V DC |
| Sounder Volume |
Low: 65dB(A)+
Medium: 80dB(A)+
High: 85dB(A)
|
| IP Rating |
IP21C |
| System Compatibility |
SITA200plus: V2.30 onwards
Duonet and Quadnet: V1 onwards
|
| Battery Current @ 24V DC |
Quiescent: 0.18mA
Active: Low Sounder 3.62mA
Active: Med Sounder 8.05mA
Active: High Sounder 11.22mA
|
| Device Loading Unit Rating |
Low Sounder: 2
Med Sounder: 4
High Sounder: 5.5
|
