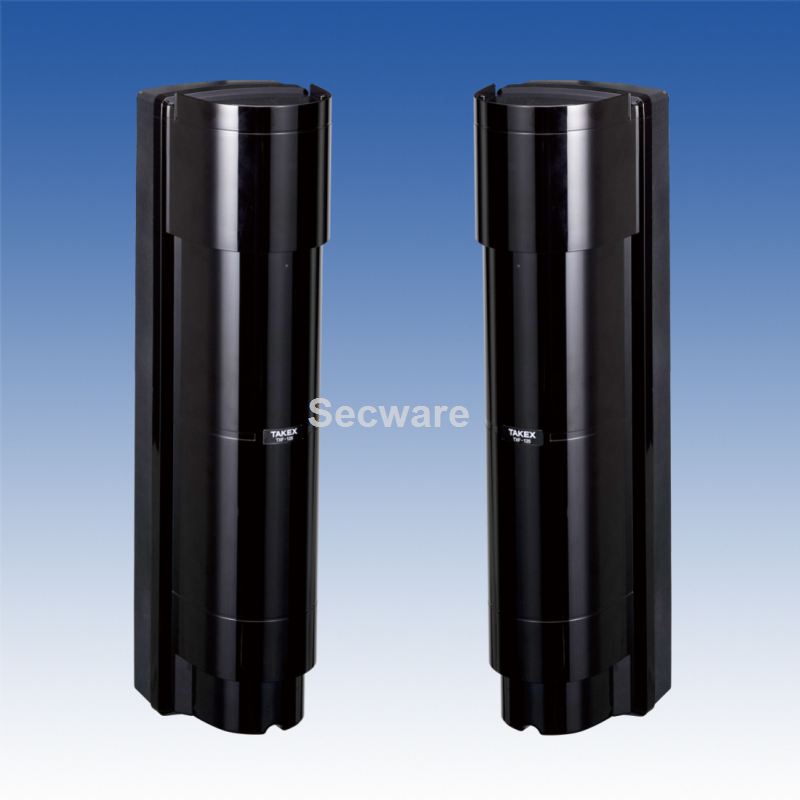

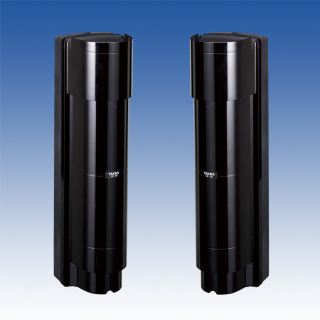

Takex 100m Battery Powered Quad Beam - Double Modulation

TXF-125DM, 100m Battery Powered Quad Beam - Double Modulation. (Excl Batteries)

The TXF-125 series are battery operated quad photoelectric beam sensors designed for compatibility with leading wireless systems; reducing the time and cost of permanent installations and allowing the use of Active Infrared Beams on rapid deployment or temporary installations.

With 4 selectable frequencies, multiple beam sets can be used in both linear and stacked configurations without risk of crosstalk, further assisted by a transmitter power function that allows the user to set 25/50/75/100m zones.

Powered by 3.6V (17Ah) batteries and featuring ±90° horizontal/±20° vertical adjustable optics to cater for the most dynamic of terrains.

Click here for batteries.


Features

  • 4 x Synchronised high power beams
  • Four selectable operation ranges 25/50/75/100m
  • 4 x Selectable beam channels to prevent crosstalk
  • Vivid internal colour aids beam alignment procedure
  • ±90° horizontal ±20° vertical adjustable sensor heads
  • Environmental monitoring circuit
  • IP65 housing
  • Model: TXF-125DM
  • Shipping Weight: 1 kgs
  • Manufactured by: Takex
Ask a Question

£406.25 Ex VAT

Add to Cart:

Manufacturer Info

(image for) Takex

datasheet
