Takex 40m Ext/80m Int 4 Channel Twin beams

Name: Takex 40m Ext/80m Int 4 Channel Twin beams
Brand: Takex
SKU: PB-40TE
Price: 115.91 GBP
Availability: InStock

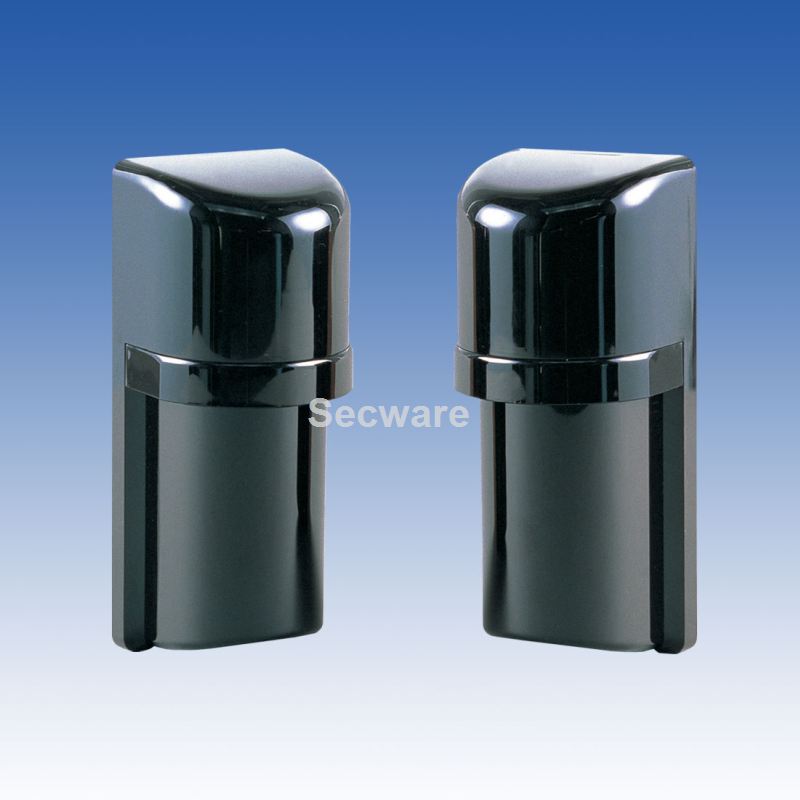

(image for) Takex 40m Ext/80m Int 4 Channel Twin beams

larger image

Talex Twin photoelectric beams are designed to meet the highest standards of quality and reliability for photoelectric beam intrusion detection. Unique twin beams are synchronised to work together to reinforce range and stability in severe weather conditions.

For distances up to 40m (135ft) outdoor / 80m (270ft) indoor.

Features

Choose from 4-Channels (selectable) for use in "stacked" or "in-line" systems without crosstalk
Synchronised Twin Beams for reliable detection
Double Modulated Beam type ensures unsurpassed immunity to direct and reflected sunlight and vehicle headlights
Multi-Meter Test Points to accurately monitor alignment voltage
Frost Resistant Cover minimises nuisance alarms in harsh weather
Automatic Gain Control for maximum stability

Specifications

Product type	Photoelectric Beam Sensor
Detection system	Simultaneous breaking of 2 beams
Infrared beam	LED pulsed beam, Double modulation
Protection distance	Outdoor 40m (135ft) or less Indoor 80m (270ft) or less
Max. beam range	Outdoor 400m (1350ft) or less Indoor 400m (1350ft) or less
Response time	50msec. to 700msec. (Variable at pot)
Supply voltage	12V to 30VDC (Non-polarity)
Current consumption	75mA or less
Alarm output	Dry contact relay output form C Contact action : Interruption time + delay time Contact capacity : 30V AC/DC, 0.5A or less
Tamper output	Dry contact relay 1b (N/C) Action : Activated when cover is detached Contact capacity : 30V AC/DC, 0.5A or less
Alarm LED	Red LED (Receiver) ON : when an alarm is initiated.
Attenuation LED	Red LED (Receiver) ON : when beam is attenuated.
Functions	Beam frequency changeover (4ch.) Monitor jack output AGC circuit Frost proof cover
Ambient temperature range	-25
