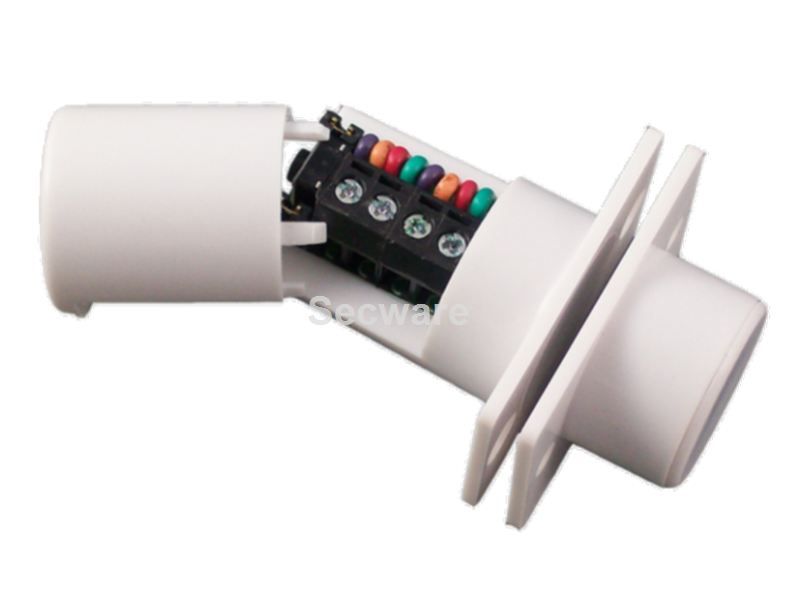

Cqr Flush Contact Grade 3 White Multi Resistored

Screw terminal block, no junction box required
Microswitch tamper
Selectable end of line resistor
Can use own resistors
Available in white or brown
Can be fitted in double pole systems
Can be used on double door configuration
Magnetic Immunity

This flush mounted magnetic door contact be used in most intruder alarm systems up to and including grade 3 as specified in EN50131-1:2006 and is certified to EN50131-2-6:2008 and environmental class II (for use indoors) by Kiwa FSS. It operates as a normally closed circuit going open when the magnet housing is moved away from the contact housing.

Colour	White
Material	HIPS
Contact Material	Silver Plated Copper
Resistor Value	Multi Resistored
Commodity Code	85311030
Country Of Origin	China
Height (mm)	30
Width (mm)	40
Depth (mm)	55
Barcode	5060399126311
Weight (kg)	0.027
Resistor Type	A, B, D, E & I
Flame Retardant	No
Type of	Flush
EN50131-2-6 Grade	3
Tamper Protection	Cover & MID
EN50130-5 class	Class II
IP Rating	4X
Temperature Range	-15°C – +40°C
Contact Dimensions (mm)	33 x 22 x 32
Magnet Dimensions (mm)	33 x 22 x 32
Connection Type	Terminal
No. of Terminals	4 Screw
Contact Type	Normally Closed
Mode Of Operation	DP, EOL/FSL
Operation Axes (X, Y, Z)	Y, Z,
Pull-in gap (X, Y, Z)mm	4, 3
Pull in Gap	12mm
Suitable for Double Door	Yes
