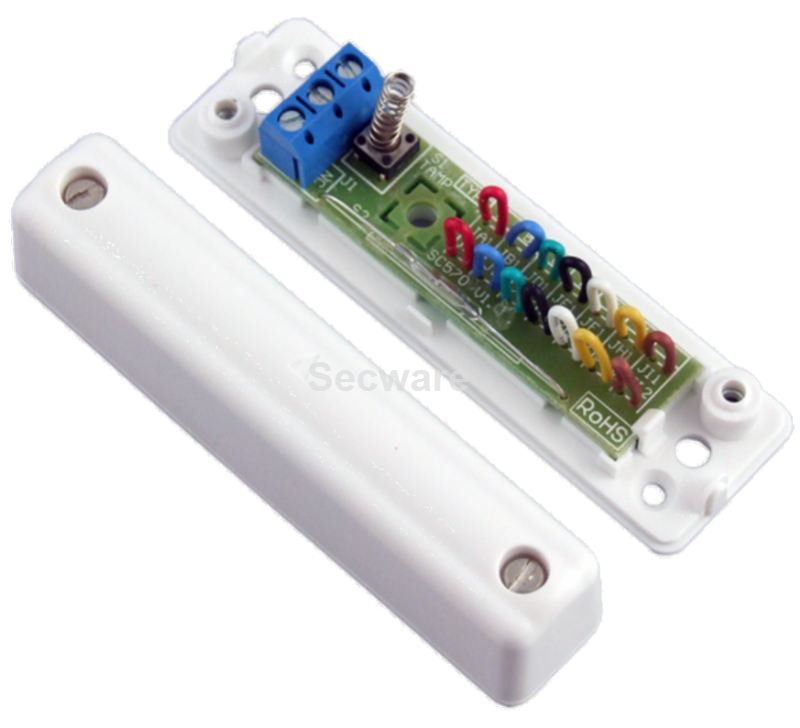

Cqr Surface Contact Grade 2 White Multi Resistored

3 Terminals
Microswitch wall tamper
Available in white or brown
Selectable end of line resistor
EN50131-2-6 Grade 2
Environmental Class II

This magnetic door contact can be used in most security systems up to and including grade 2 and environmental class II as specified in EN50131-1 and is compliant to EN50131-2-6

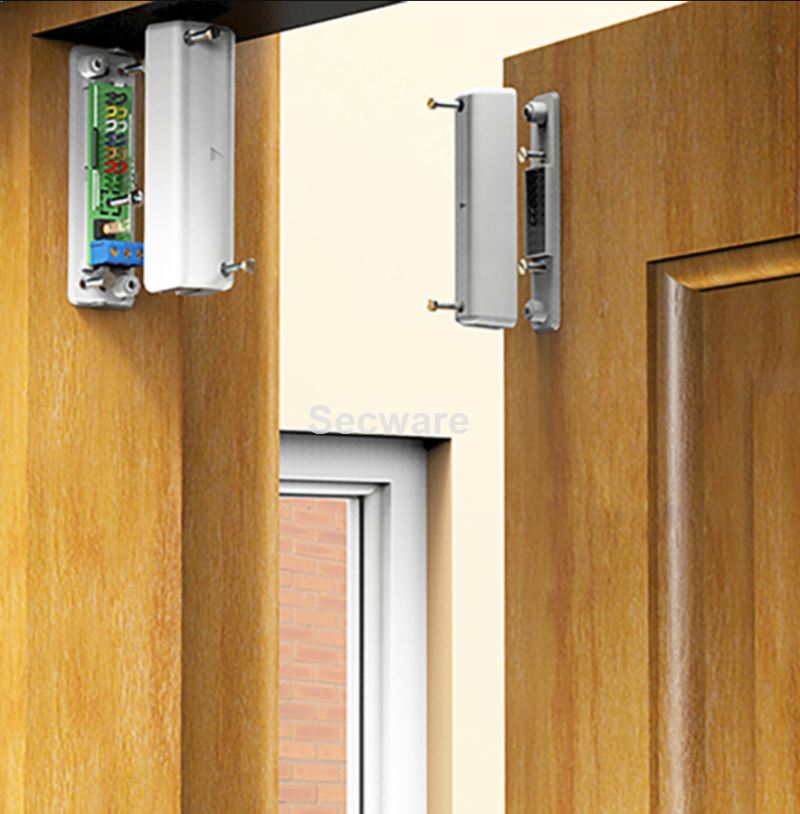

It operates as a EoL circuit changing the resistance value when the magnet housing is moved away from the contact housing. This contact can be used on windows and doors to detect the unauthorised entry of an intruder. The contact is also protected against tampering with optional detection of removal from its mounting surface.

Colour	White
Material	HIPS
Contact Material	Rhodium
Resistor Value	Multi Resistored
Commodity Code	85311030
Country Of Origin	UK
Height (mm)	20
Width (mm)	40
Depth (mm)	84
Barcode	5060399128155
Weight (kg)	0.07233
Resistor Type	A, B, D, E, F, H & I
Type of	Surface
EN50131-2-6 Grade	2
Tamper Protection	Cover & RFMS
EN50130-5 class	Class II
IP Rating	3X
Temperature Range	-15°C – +40°C
Contact Dimensions (mm)	85 x 25 x 21
Magnet Dimensions (mm)	85 x 25 x 21
Connection Type	Wired
No. of Terminals	3 Terminal
Contact Type	Normally Closed
Mode Of Operation	EOL/ FSL
Operation Axes (X, Y, Z)	X, Y
Pull-in gap (X, Y, Z)mm	36, 27
Pull in Gap	27mm
Suitable for Double Door	Yes
No of Reed Switches	1
