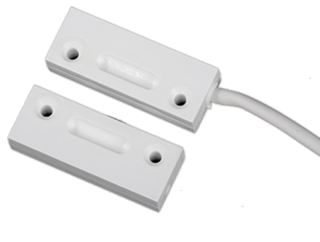

Cqr Surface Contact Grade 2 White Non-Resistored

4 Core pre-wired
15mm operating gap
EN50131-2-6 Grade 2
Environmental Class II
Size 38 x 15 x 9mmn
Available with a 60cm, 3m or 12m cable

This surface mounted magnet contact can be used in security systems up to and including grade 2 and environmental class II as specified in EN50131-1 and is compliant with EN50131-2-6.
It operates as a normally closed circuit going open when the magnet is removed. This contact is not suitable for ferrous surfaces

Colour	White
Material	HIPS
Contact Material	Rhodium
Commodity Code	85311030
Country Of Origin	UK
Height (mm)	20
Width (mm)	68
Depth (mm)	78
Barcode	5060399128001
Weight (kg)	0.3993
Type of	Pre-wired
EN50131-2-6 Grade	2
Tamper Protection	Internal
EN50130-5 class	Class II
IP Rating	3X
Temperature Range	-10°C – +40°C
Contact Dimensions (mm)	38 x 15 x 9
Magnet Dimensions (mm)	38 x 15 x 9
Connection Type	Wired
No. of Terminals	4 Wire
Contact Type	Normally Closed
Wire length (mm)	600
Mode Of Operation	DP
Operation Axes (X, Y, Z)	X, Y, Z
Pull-in gap (X, Y, Z)mm	10, 15, 25
Pull in Gap	15mm
Suitable for Double Door	Yes
No of Reed Switches	1
Resistor Value	Non-resistored
