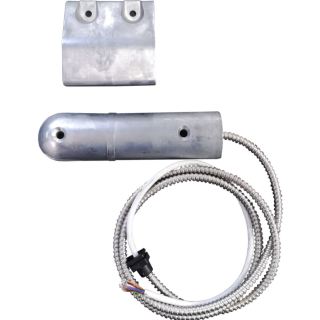

Knight 2 METRE armoured cable Grade 3 roller shutter contact

Grade: 3

Partcode: YF10C2M

• Grade 3 Universal Handed Roller Shutter Contact
• 2 metres of Armoured Sleeving
• Magnetic Interference Detection and Selectable Resistors for all main panels
• Suitable for double doors / shared zone installations – just follow the instructions under the Documentation tab below
• This is compatible with all mainstream UK control panels and includes both EOL and alarm by-pass resistor options
• Colour: Silver
• Environmental Class 3
• Operation Gap: 35mm Approx
• Dimensions: 150mm x 40mm x 15m
• Terminals: 8-Core
• Tamper: Sealed unit
• Includes resistors compatible with – Honeywell, Orisec, Ademco, Scantronic, Menvier,
  Texecom, Pyronix, Castle, Aritech, Europlex, HKC, Gardtec / RISCO, Inner
  Range and Guardall Control Panels
• Alarm Values 1k, 2k2, 4k7, 6k8, 8k2
• EOL Values 1kr, 2k2, 4k7, 8k2
• Just select the wires as per the instructions to determine the resistance to suit your panel
• Note this contact already meets the requirements of BS50131-2-6: 2004
