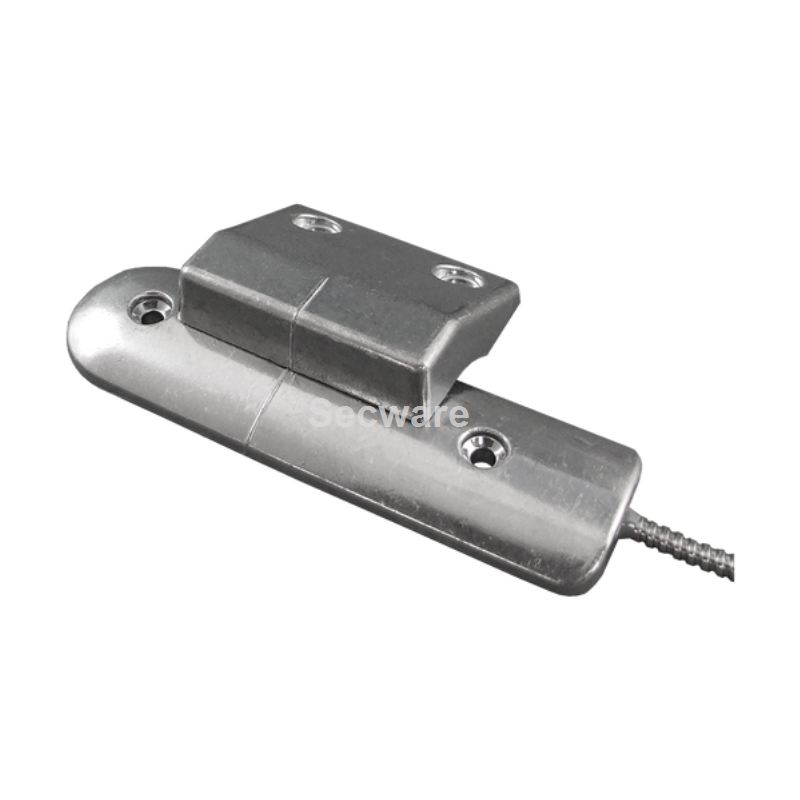

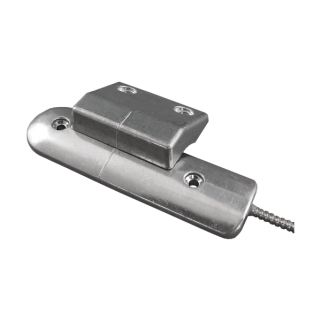

Type Ab Roller Shutter Contact Grade 2 Aluminium Multi Resistored

High Quality Alloy Finish
Other resistor value available
45cm or 1 mtr Armoured cable lengths
EN50131-2-6 Grade 2
Environmental Class III

This roller shutter contact can be used in most security systems up to and including grade 1 & 2 as specified in EN50131-1:2006 and is compliant with EN50131-2-6:2008 and environmental class III.

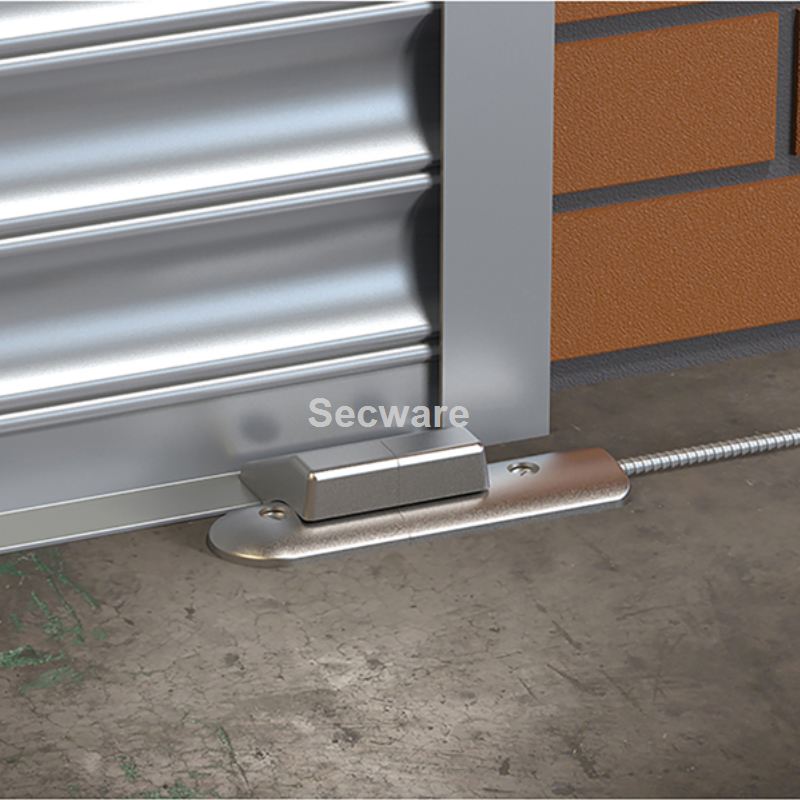

It operates as a normally closed circuit going open when the magnet housing is moved away from the contact housing. This contact can be used on roller shutter doors to detect the unauthorised entry of an intruder. The contact is sealed to prevent access to the inside.

Colour	Aluminium
Material	Aluminium
Contact Material	Ruthenium
Resistor Value	Multi Resistored
Commodity Code	85311030
Country Of Origin	UK
Height (mm)	10
Width (mm)	50
Depth (mm)	200
Barcode	5060399127721
Weight (kg)	0.38
Resistor Type	A & B
Type of	Roller Shutter
EN50131-2-6 Grade	2
Tamper Protection	Internal
EN50130-5 class	Class III
IP Rating	32
Temperature Range	-10°C – +40°C
Contact Dimensions (mm)	80 x 71 x 30
Magnet Dimensions (mm)	80 x 71 x 30
Connection Type	Wired
No. of Terminals	8 Wire
Contact Type	Normally Closed
Wire length (mm)	450
Mode Of Operation	DP, EOL/FSL
Operation Axes (X, Y, Z)	X, Y
Pull-in gap (X, Y, Z)mm	25, 50
Pull in Gap	50mm
Suitable for Double Door	Yes
No of Reed Switches	1
