Pyronix Hybrid EURO 46 V10 panel

Product is obsolete.

Obsolete

Alternative click here

Product Features

  • Hybrid 76 zone control panel
  • Fully menu-driven programming
  • Connect with the vast range of communication options
  • Remote maintenance with Pyronix InSite UDL software
  • Grade 2 & 3 security with a fully compliant app
  • Connect from anywhere with the HomeControl+ App
  • No on-site IT configuration

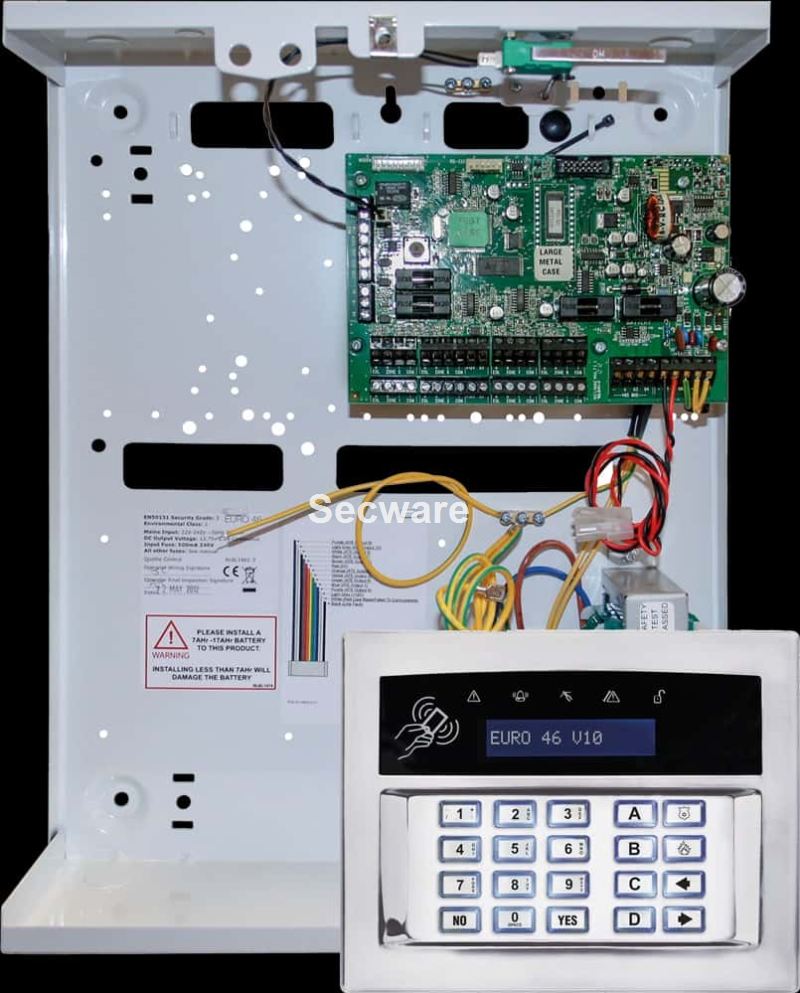

  • Supplied with a EUR-064 keypad. Product shown with optional chrome keypad

Control panel technical characteristics

Two-way wireless technologyRequires EURO-ZEM32-WE
Independent areas6
Tamper protectionFront and back
LCD keypad with intergrated prox readerEUR-064
User codes and prox tags75
Guard codes10
Reporting formatsContact ID (standard and IP) | Fast Format (standard and IP) | SIA3 (standard and IP)
System logs1250 events (EEPROM)
Areas6

Inputs & outputs

Input typeDouble pole, DEOL and 3EOL | Wireless with additional EURO-ZEM32-WE
Two-way wireless inputs64 (with 2 x EURO-ZEM32-WE)
Onboard wired inputs8 (10 including keypad inputs)
Total inputs76
Outputs on board1 relay | 4 transistor | 10 low power ATE outputs
Two-Way Wireless Keypads4 (requires EURO-ZEM32-WE)
Output modules2
Wired automation outputs30
Maximum outputs85
Two-way wireless keyfobs32 (requires EURO-ZEM32-WE)
Two-way wireless sirens2 (requires EURO-ZEM32-WE)
Wired keypads6
Readers and entry control5

Communications and modems

GPRS modem (optional)Yes
GSM modem (optional)Yes
PSTN modem (optional)Yes
LAN modem (optional)Yes
WiFi modem (optional)Yes
Supports PyronixCloud & HomeControl+ AppYes
SMS numbers10
Remote speaker and microphone16 ohms speaker wired to endstation
Event Signalling to InsiteYes
ARC compatibilityYes
Compatible with UDL softwareYes

Environmental and operating features

Storage temperature-20C to +60C
Certified operating temperature-10C to +40C
Physical dimensions (H x W x D)PCB 110 x 170 x 40 mm | Small case 297 x 250 x 82 mm | Large case 390 x 305 x 100 mm
WeightSmall case 4.8kg inc. battery | Large case 11.5kg inc. battery

Electrical & battery

Battery capacitySmall case 7Ah maximum | Large case 17Ah maximum
Battery voltage~13.8VDC
Battery low voltage protection~10.5VDC
Low battery threshold~10.5VDC
Recharge time<24 hours
Mains supply~230VAC at 50Hz | -15% +10 %
Quiescent current consumption80mA (PCB)
TransformerPower Supply Type A.
Fuse (battery)T 1.5A anti-surge slow blow 250V
Fuse (12v outlets)F800mA quick blow 250V
Fuse (mains)T500mA H anti-surge slow blow 250V
Fuse (RS485 data BUS)F800mA quick blow 250V
Relay outputs3A, max 30V

Resistance (wired inputs)

Normal1k4 to 2k9
Intruder4k2 to 7k8
Tamper<1k4 or >22k
Fault8k to 11k3
Masking11k6 to 22k

Certifications and warranty

EN CertificatePD6662:2010+IA501:2015 | EN50131-1:2008+A1:2009 | EN50131-3:2009
Environmental classII
Warranty2 Years
Security GradeSmall case 2 | Large case 3



  • Model: EURO46/S-UK-V10
  • Shipping Weight: 3 kgs
  • Manufactured by: Pyronix
