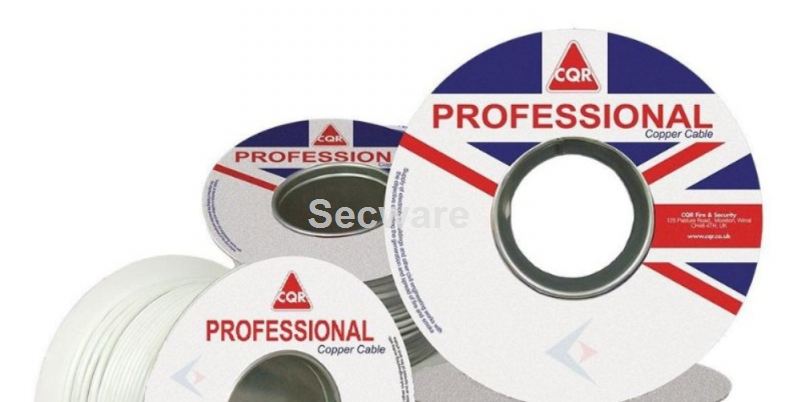

CQR 8 Core Screened Professional Security Cable

Professional Screened security cable 100m

This UK manufactured cable has cores of 7 strands of 0.182mm annealed tinned copper wire and is sheathed in Type 6 PVC. Suitable for any installation where signal integrity is paramount.

Professional Screened cable has an aluminum foil wrapped round the cores. Screened cable offers significant advantages in situations where RF interference or spurious signals may lead to false alarms or erosion of data. An earth wire is also present along the entire length of the cable.

UK Manufactured to BS4737-3.30:2015 Type 2. Also available with a Low Smoke Zero Halogen sheath manufactured to BS4737-3.30:2015 Type 1.

Professional Cable

Conductor:	7 x 0.182
Conductor area:	94.6 Ohms
Drain wire:	0.182mm²
Current Rating:	1 Amp
Max Voltage:	50V
Core Insulation:	PVC
Sheathing:	PVC
Screened Available
Screening:	Aluminium / pet foil
Drain Wire::	Soft tinned copper

Available as Low Smoke Zero Halogen
Core Insulation:	LSZH
Sheathing:	LSZH

Available as Low Smoke & Fume
Core Insulation:	PVC
Sheathing:	LSF

BS4737-3.30:2015 Type 1 Cable LSZH
CAB4HF/WH/100	4 Core Cable Type 1 with LSZH Sheath
CAB6HF/WH/100	6 Core Cable Type 1 with LSZH Sheath
CAB8HF/WH/100	8 Core Cable Type 1 with LSZH Sheath
CAB12HF/WH/100	12 Core Cable Type 1 with LSZH Sheath
CABS4HF/WH/100	4 Core Screened Type 1 with LSZH Sheath
CABS6HF/WH/100	6 Core Screened Type 1 with LSZH Sheath
CABS8HF/WH/100	8 Core Screened Type 1 with LSZH Sheath
CABS12/WH/100	12 Core Screened Type 1 with LSZH Sheath
BS4737-3.30:2015 Type 2 Cable
CAB4/WH/100M	4 Core Cable Type 2
CAB6/WH/100MT	6 Core Cable Type 2
CAB8/WH/100M	8 Core Cable Type 2
CAB12/WH/100M	12 Core Cable Type 2
CAB20/WH/100M	20 Core Cable Type 2
CABS4/WH/100	4 Core Screened Cable Type 2
CABS6/WH/100	6 Core Screened Cable Type 2
CABS8/WH/100	8Core Screened Cable Type 2
CABS10/WH/100	10 Core Screened Cable Type 2
