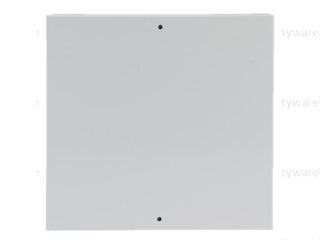

Eaton 10 Zone Intelligent Powered Expander

A range of wired expanders designed and approved to be used as part of a security grade 2 or 3 system. Bus connected intelligent expanders are intended for use on all i-on control panels

Providing installation flexibility, with ten zones and 4 outputs on board, the expanders give a choice of zone wiring options. These include FSL with various resistor values and 2 wire or 4 wire CC for takeover of legacy systems.

A host of installer friendly options are designed to save time on installation and service visits.

These include:

• Decimal expansion system for more zones per expander. This also makes zone identification easier
• Semi-Automatic addressing makes addressing much simpler. No address duplication or lost address links
• Device locator to find any expander on the site by simply activating the buzzer inside the expander then walk the site listening for the buzzer

EXP-PSU-SM

• Ten wired zones with 4 outputs
• 1 amp power supply
• Capacity for a single 7Ah battery
• Contained in a small metal housing
