IS 8A Double Pole 24v Polarised Relay

The 24 volt double pole relay is a simple to fit module wherever a dry contact, voltage free switching is required or where there is a need for higher than usual currents and voltages to be switched. The polarised function enables it to be used in Fire Alarm and similar systems where the polarity of the output to the bells, sounders etc. is reversed when in alarm.







Note:

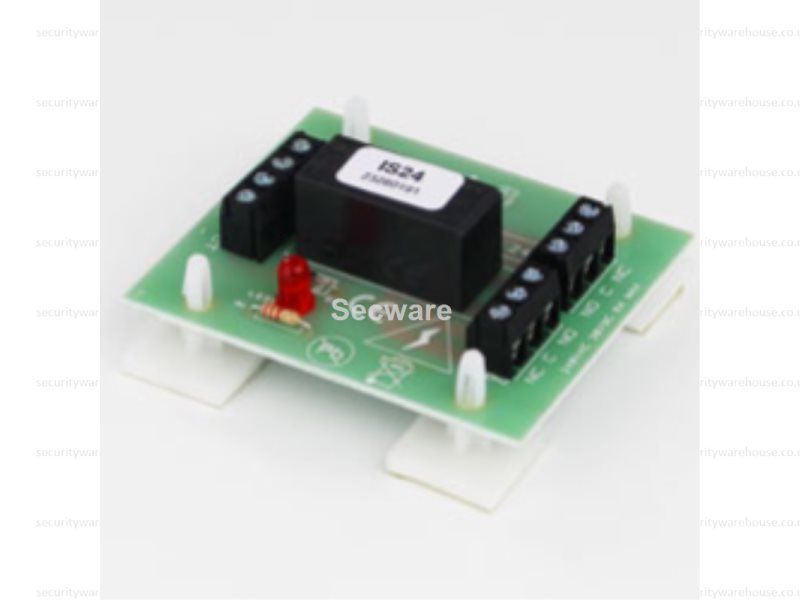

Polarity must be correct for the relay to activate. The 24 Volt relay is mounted on a printed circuit board that has screwed terminals, complete with LED indication that the relay is activated.







For a neat, easy and safe fixing we recommend the use of IS Sticky Feet Size B, a self adhesive mounting pillar.



Supply Voltage	24 Volt DC
Coil Resistance	1440 Ohms
Nominal Current	25 mAmps
Double Pole Changeover Contacts	Rated at: 8 Amps at 240 Volts AC 8 Amps at 30 Volts DC
Dimensions	56mm (W) x 69mm (L) x 30mm (H)
Packing Weight	38g
