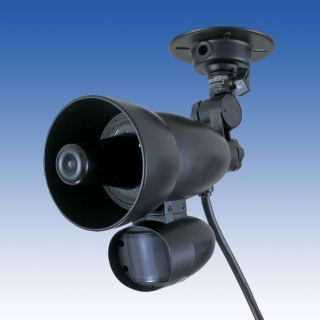

Takex External 12m PIR with Voice Speaker

The PV-12E sensor speaker is designed to play a recorded message when the 12m PIR sensor detects the movement of people or vehicles.

Common applications include welcoming messages at building entrances, or alarm or warning messages at construction sites and other dangerous areas.

Type	Sensor Speaker
Detection system	Passive infrared
Coverage	Wide angle 40’ (12m) Max.
Sensitive zone	24 zones (12 pairs)
Supply voltage	10 to 14VDC (non-polarity)
Current consumption	20mA or less (Stand by) 500mA or less (Max.)
Alarm output	Dry contact relay: form C AC/DC 30V 0.5A (Resistive load) Contact operation: synchronized with recoding time. (min 2 secs.)
Warm up time	60 secs. (no detection, recording O.K.)
Sound synthesis method	PCM method
Record method	Built-in condenser microphone
Record / Playback time	Max. 12 secs.
Sound output	Operation: One-shot playback (12 sec.) by detection signal (No retrigger during playback) Sound volume: Max.100dB/2W(1m ahead) at right recording level Adjustable from 0 to Max by volume switch
LED indicator	(During recording) Recording level is indicated: good: flashing, too low: Lights on, too loud: off (During playback) Light on during playback time (12 sec.)
Sensitivity adjustment	Variable 20%(L) to 180%(H) (medium : 100%)
Mounting position	Indoor / outdoor (rainproof)
Weight	Approx. 1000g
Appearance	Body: Resin (Black)
