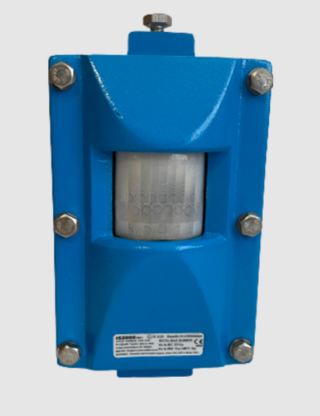

Voltek 15m Intrinsically Safe PIR Detector

Intrinsically safe PIR with 15m x 90 degree detection range. Designed and manufactrued to very stringent standards that allow their use in Zone 0, 1 and 2 areas. Atex and IECEx certified.

• Designed and manufactured to very stringent standard.
• Suitable for use in hazardous areas:
  • Zone 0, 1 and 2 areas
  • Gas groups IIA, IIB and IIC T5 Ga
  • Dust groups IIIC T200 100°c Da
  • North American divisions 1,2 and 3, groups A,B,C,D,E,F and G
• Enclosed in a very robust cast aluminium IP67 enclosure
• 20mm cable gland entry
• 15m x 90 degree detection range
• Must be used with a suitable ZE Interface
• Suitable for both external and internal use
• Supplied complete with wall mounting bracket and installation instructions
• Fully compatible with the Voltek range of products below:
  • ZE1-1 to ZE2-6 Interface units
