Optex Compact 5m External Curtain PIR

The FTN series provides short range curtain detection that can be adjusted with switchable lenses up to 2m or up to 5m depending on which detection range is ideal to protect various front doors, windows and balconies.

The FTN-ST is a hardwired model which features Super Multi Dimension Analysis (SMDA) logic for ultimate sensitivity optimisation. Every motion is analyzed before signaling an alarm to reduce false alarms.

As a result environment reaction capability becomes 24 times more effective. The FTN-ST is a great addition to your over residential home security systems or commercial security systems.

Compact and flexible

The FTN outdoor PIRs are both compact and very flexible curtain detection PIRs. The slim body can easily fit on a window or door recess and its built-in bracket rotate 190 degree. Additionally the lens can be switched between 2m and 5m detection to adapt to the area to protect.

Animal tolerant and intelligent

The FTN series generates top and bottom passive infrared beams, a presence should be detected in both beams to trigger the alarm. So cat, dogs, foxes and birds will not be able to trigger the system. The FTN series digitally analyses the wave forms of the detected objects and will ignore reflection caused by sunlight, air conditioning units, vegetation sway. As a result the FTN series is the ultimate stable outdoor sensor.

Applications

  • Buildings
  • House
  • Garage

Key Features

  • Super Multi Dimension Analysis Logic
  • Short range curtain detection
  • Perfect pet immunity
  • Double conductive shielding

Technical Specification

Detection method Passive infrared
PIR coverage 5×1m (16'5"×3'3")

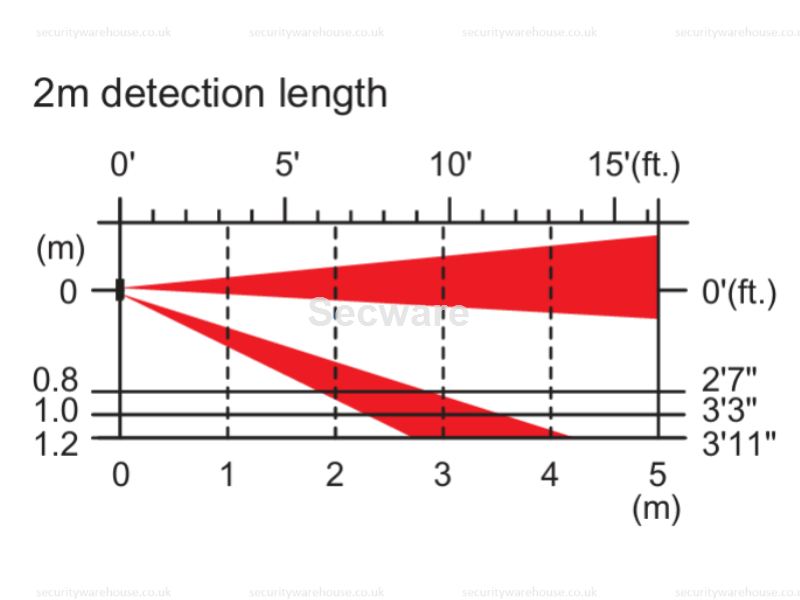

Detection length limit 2 m, 5 m (6'7", 16'5")
Detectable speed 0.3 - 1.5 m/s (1' - 4'11"/s)
Sensitivity 2.0°C (at 0.6 m/s) (3.6°F (at 2'/s))
Operation voltage 9.5 - 18 V DC
Current draw 17mA(max.) (at 12 V DC)
Alarm period 2.0 ±1.0sec.
Warm-up period Approx. 60 sec. (LED blinks)
Alarm output N.C./N.O. Selectable 28 V DC 0.1 A (max.)
Trouble output N.C. 28 V DC 0.1 A (max.), open when the cover is removed.
LED indicator Light/Blink: Warm-up, alarm, masking detection (FTN-AM only)
Operation temperature -20 - +60°C (-4 - +140°F)
Environment humidity 95% max.
Weatherproof IP55
Mounting Wall (Outdoor, Indoor)
Mounting height 0.8 - 1.2 m (2'7" - 3'11")
Weight 100 g (3.5 oz.)
Accessories screw (3×20 mm)×2

*Specifications and design are subject to change without prior notice.

  • Model: FTN-ST
  • Shipping Weight: 0.8 kgs
  • Manufactured by: Optex
