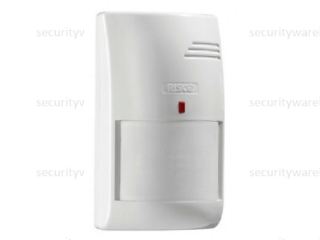

Risco Digisense 15m PIR

DigiSense™ is the ideal choice for both commercial and residential installations. Based on RISCO Group's advanced detection technologies, DigiSense™ is designed to assure superior catch performance and false alarm immunity.

Due to their identical and compact housing, the installer can mix and match the various technologies of DigiSense™ detectors in one installation while maintaining the same overall look.

Features

  • 15m (50’) coverage, 12m (40’) for pet friendly models
  • Microprocessor-based Digital Signal Processing
  • Built-in EOL resistors
  • True Temperature Compensation
  • Ample wiring space for easy installation
  • Variable Pet Threshold (VPT™) in Pet Friendly models
  • DT models include Tri-colour LED for easy walk test and anti-fluorescent interference signal processing
  • Optional corridor and curtain lenses
  • Model names:
  • RK415DT DigiSense DT
  • RK415DTQ DigiSense DT Quad
  • RK412DTPT DigiSense DT Pet
  • RK415DTAM DigiSense DT “OR” Logic
  • RK415PR DigiSense PIR
  • RK415PQ DigiSense QUAD
  • RK412PT DigiSense PIR Pet
  • LLPL02 DigiSense Corridor lens* 20m x 6°
  • LLPL03 DigiSense Curtain lens* 15m x 6°
  • RA90 Ceiling swivel for DigiSense DT models*
  • RA91 Wall/ corner swivel for DigiSense DT models*
  • *Not applicable for Pet Models

Technical Specifications

  • EN50131 Security Grade 2: Relevant for all DigiSense models
  • Coverage Range: 15m x 15m (50’x50’) for DT, DT Quad, DT “OR” Logic and PIR and QUAD models, 12m x 12m (40’ x 40’) for DT Pet and PIR Pet models
  • Installation height: 2.4m (7’10”) for DT Pet and PIR Pet models, 2-2.7m (6’7”-9’) for DT & DT QUAD, DT “OR” Logic and PIR and Quad models
  • Detection Logic: MW and PIR for DT &DT QUAD and DT Pet models, PIR for PIR & QUAD and PIR Pet and Selectable: MW or PIR , MW and PIR for DT “OR” Logic
  • Creep Zone: Not included in PIR & QUAD and PIR Pet versions
  • Anti-masking: in DT “OR” Logic model, using MW Channel
  • Pet Friendly with VPT: In DT Pet(34kg/ 35lb) and PIR Pet (32kg/ 70lb)
  • Microprocessor based Digital Signal Processing: Not included in PIR & QUAD
  • Built-in EOL Resistors: Double EOL for DT and DT QUAD, DT Pet, PIR & Quad, Triple EOL for DT “OR” Logic, N/A in PIR Pet model
  • Anti-fluorescent interface signal processing: Not included in PIR & QUAD, PIR Pet models
  • Optional Corridor and Curtain lenses: N/A in DT Pet and PIR pet models
  • Operating Voltage: 9 to 16 VDC in all models
  • Optical Filtering: White light protection, pigmented lens
  • Operating Temperature: -20°C to 55°C (-4°F to 131°F)
  • Dimensions: 106 x 60 x 47mm (4.17” x 2.36” x 1.85”)



  • Model: RK415PR
  • Shipping Weight: 0.5 kgs
  • Manufactured by: Risco
