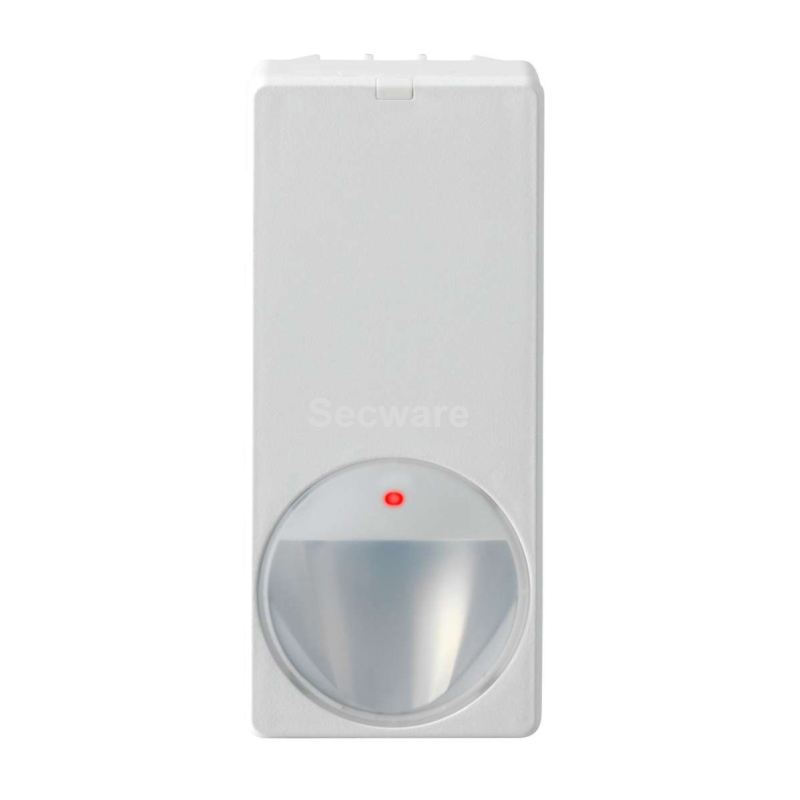

Siemens MAGIC PIR Detector, 12m wide angle with Anti-mask

Description

MAGIC motion detector PDM-I12T is impressive with its modern and elegant design. Its style is suitable for all installation situations. Together with the enhanced Visatec algorithm, its patented MAGIC mirror provides reliable detection of intruders and the highest false alarm immunity. Flexible installations can be carried out quickly and error-free due to features like Auto Walktest and new End-of-Line concept (EoL).

Technical data

Detection characteristics / range	volumetric / 12m
Optical system	MAGIC mirror
Approval	EN50131-2-2 Grade 3 VdS Class C
Pet immunity	yes (optional)
Supply voltage	9 ... 16VDC (12V nom.)
Current consumption	3.9mA (rms) 6.6mA (max peak)
Sensitivity evaluation mode	4 settings
Outputs	30VDC / 100mA, NC
Walk test input	LOW ≤ 1.5V / HIGH ≥ 3.5V
Set/unset input	LOW ≤ 1.5V / HIGH ≥ 3.5V
Walking speed	0.1 ... 4m/s
EOL resistor	RI = 4.7kΩ ±5%, 250mW REoL = 4.7kΩ ±5%, 250mW RF = 2.2kΩ ±5%, 250mW
Operating temperature	-10°C …+55°C
Air humidity (EN 60721)	< 85% RH, non-condensing
Storage temperature	-20°C …+60°C
Housing protection (EN 60529)	IP41 / IK02
Dimensions (W x H x D)	57mm x 128mm x 32mm
Weight	0.095kg
Colour	RAL9003
