Takex 15m Flame & PIR Sensor

A combination UV flame sensor and wide-angle PIR with up to 15m flame and intrusion detection for indoor and outdoor protection of premises.

  • High sensitivity ultraviolet flame sensor + wide angle intrusion PIR
  • Dual output modes; AND/OR
  • Forced output operation following continued flame detection
  • Sensitivity adjustment
  • Alarm memory function
  • Detection timer
SPECIFICATIONS
Detection system

[Flame Sensor]
Ultraviolet rays (Detection wave length 185 to 260nm)

[PIR Sensor]
Passive infrared

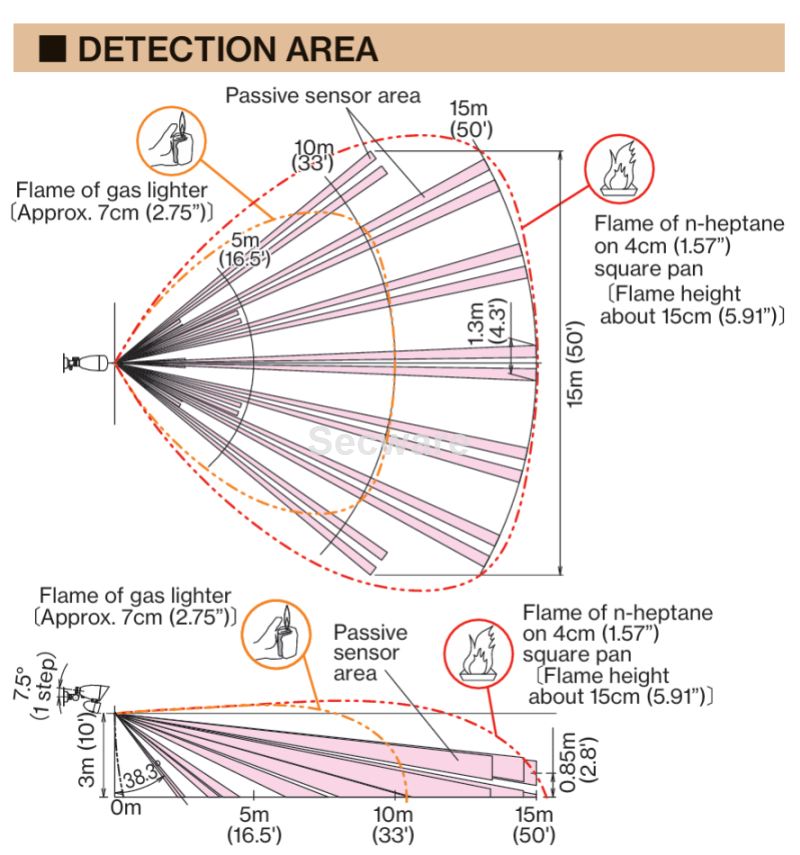

Coverage

[Flame Sensor]
15m (50'): 15cm (5.90'') flame on 4cm (1.57'') square pan in front
10m (33'): 7cm (2.75'') lighter flame in front

[PIR Sensor]
Wide Angle 15m (50') Max

Supply voltage

10V to 30VDC (non-polarity)

Current consumption

25mA Max.

Alarm output

ALARM OUTPUT 1
[AND mode]
• When flame sensor detects twice within set “AND” timer
(Detection time after 2nd detection + off delay. Approx. 2 sec.) or
• When flame sensor detects for “Flame duration time”
(Detection time after 30/60 sec + off delay. Approx. 2 sec.)
[Individual mode]
• When flame sensor detects (Detection time + off delay. Approx. 2 sec.)

ALARM OUTPUT 2
[AND mode]
• When both flame and passive sensor detect within set “AND” timer
(Detection time 2 sec min.)
[Individual mode]
• When passive sensor detects (One shot. Approx. 2 sec)

Alarm memory

Reset after blinking (3 min) and lighting (47 min)
(Operative individually with flame and passive sensors)
* No indication when Alarm LED is off

LED indicator

[Flame Sensor]
Alarm LED (Red)
Inside front window • Lighting at alarm
(Detection time + off delay. Approx. 2 sec.) *Blinking (3 min) / Lighting (47 min) at memory

[PIR Sensor]
Alarm LED (Red)
Inside front window • Lighting at alarm
(Detection time + off delay. Approx. 2 sec.) *Blinking (3 min) / Lighting (47 min) at memory

Sensitivity adjustment

[Flame Sensor]
(H [100%], L [50%])
*Selectable only in "OR" mode
(Fixed to H [100%] in "AND" mode

[PIR Sensor]
4 steps (100%, 80%, 50%, 20%)

Mounting position

Indoor / outdoor

Wiring

Lead wire [Cord length : 0.5m (20")]
(6 cores : 2×power, 4×alarm)

Weight

Approx. 550g (including flange)

Appearance

Body : Resin (Black)

  • Model: FP-5500E
  • Shipping Weight: 1 kgs
  • Manufactured by: Takex
