Texecom Mirage 12m Dualtec Detector

Obsolete

Available while stocks last

Alternative Click Here

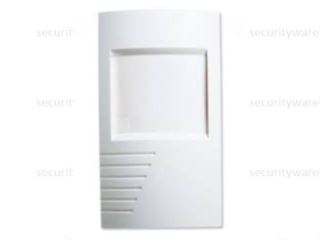

Texecom, Mirage DT (Superior Dual Technology Detector) [ADA-0001]

The Texecom Mirage Dual technology combines state of the art microwave & PIR in one detector.

The Mirage has triple independent LEDs and fully adjustable microwave range, the Texecom Mirage Dual Technology detector provides outstanding catch performance however harsh the environment.

This Dualtech PIR Detector is especially suited to Garages or conservatory's

The Texecom range of Mirage PIR Detectors will work perfectly with the following Texecom alarm panels; Texecom Veritas Compact 8, Texecom Veritas R8, Texecom Veritas R8 Plus, Texecom Veritas Excel plus any of the Texecom Premier Panel range.

Specification:

• Range: 12m (40 feet), 104˚ volumetric coverage
• Supply Voltage: 9 - 16VDC
• Current Consumption: 20mA typical at 12VDC
• Alarm Output: Normally closed
• Dimensions: 116mm x 66mm x 41mm
• Design: Noise reduction circuits with maximum ground plane
• RF Immunity: No false alarms from 80MHz to 1GHz at 50V/m modulated
