Menvier TSD2 Speech Dialler

SD2

Obsolete

For alternative CLICK HERE

Key Features

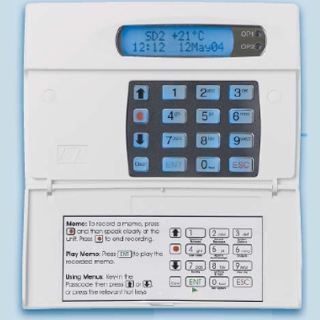

• 32 character blue LCD display with integral microphone and loudspeaker.
• DTMF dialling method.
• All information is permanently stored in an NVM (Non Volatile Memory).
• 128 event log with time and date.
• Up to 32 seconds for messages.
• One common message and up to 8 user-defined voice or SMS text messages can be stored. These can be re-recorded.
• Up to 10 contacts can be stored. They can be assigned 32 character text string, which includes name, telephone number and message type.
• Programmed information is password protected.
• The dialler can be accessed remotely by dialling into the unit with a touch-tone telephone. Once connected, you can turn on and off the two outputs, activate the listen-in or talkback mode, listen to the message, or record a new message.
• 'Listen-In Mode' switches the internal microphone to the telephone line, so that you can hear activity at the premises.
• 'Talkback Mode' switches the internal loudspeaker to the telephone line so you can talk to the premises.
• A memo feature can be accessed locally at the unit, or remotely using a touch-tone telephone. New messages will be indicated on the display with an audible tone or flashing display. It can be programmed to record automatically when a trigger input is activated.
• The unit incorporates a temperature sensor and can display the ambient temperature. High and low alarms may be programmed.
• Dials any combination of 10 telephone numbers.

• CTR21 Pan European Approved. Manufactured to comply with R&TTE Directive.

  Technical Specifications

  Electrical:
  Power supply	12v dc from an external source, such as an alarm panel
  Input voltage	11.5 - 14v dc
  Physical:
  Operating temperature	0
