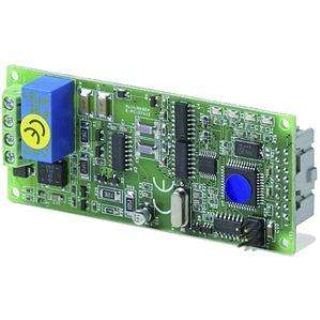

Siemens SPC PSTN communication module

Description

The SPCN110.000 PSTN module (up to 56K) is compatible with the complete SPC panel range and plugs directly on the main PCB removing the need for any additional wiring. The modem can take control of the line and communicates with a central station (ARC) using common format protocols (SIA, Contact ID). It also supports PPP connection to SPC Pro software for remote programming and configuration up-/download. The PSTN modem can be used as the primary source of communication or as backup to GSM modem.

Technical data

Network connections	PSTN (analogue telephone network)
Operating current	Max. 35 mA at 12 VDC (communication active)
Quiescent current	Max. 25 mA at 12 VDC
Mounting	Plug on module to SPC controller
Operating temperature	-10 ~ +50 °C
Weight	0.030 kg
Dimensions (W x H x D)	90 x 38 x 25 mm (PCB)
Standard / approval	EN50131-1 / EN50131-3 approved with control panel UK: PD6662:2010

SPCN110.000 PSTN communication module is accessory of


SPC4220.900-K1 (UK/IE only) SPC control panel 8-32 zones and SPCK420 LCD keypad, English	Order number S54541-C111-A100
SPC5230.310-L1 SPC control panel 8-128 zones, G3-housing	Order number S54541-C103-B100
SPC4221.220-L1 SPC control panel, 8-32 zones, wireless receiver, G2 housing with metal base and plastic cover	Order number S54541-C113-A100
SPC4320.320-L1 SPC control panel, 8-32 zones, Ethernet, G2 metal housing	Order number S54541-C109-B100
SPC4320.320 KIT w, LCD w. CR, 2 x IB44 (UK/IE only) SPC4320.320 KIT w, LCD w. CR, 2 x IB44 [UK & Ireland only]	Order number L54541-N110-A100
SPC5320.320-L1 SPC control panel, 8-128 zones, Ethernet, G2 metal housing	Order number S54541-C106-B100
SPC5330.320-L1 SPC control panel, 8-128 zones, Ethernet, G3 metal housing	Order number S54541-C107-B100
SPC6330.320-L1 SPC control panel, 8-512 zones, Ethernet, G3 metal housing	Order number S54541-C105-C100
