Scantronic 9651PD-41 Grade 2 8 zone Panel with Keypad

Name: Scantronic 9651PD-41 Grade 2 8 zone Panel with Keypad
Brand: Scantronic
SKU: 9651PD-41
Price: 63.58 GBP
Availability: OutOfStock

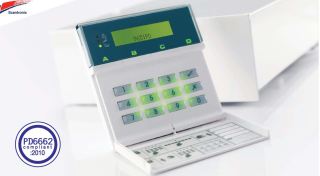

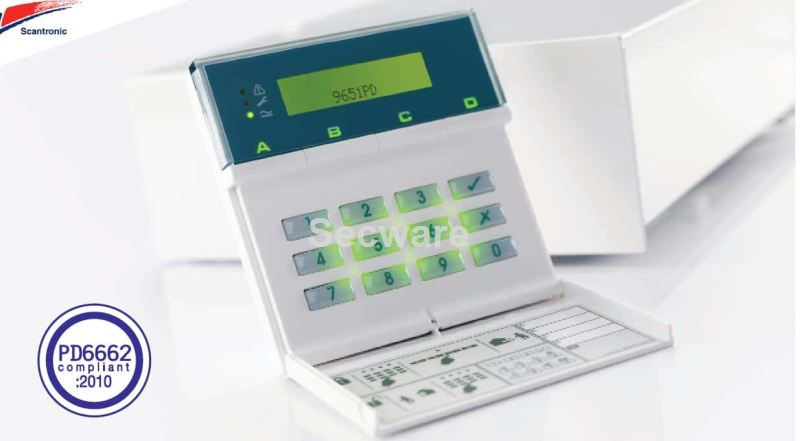

(image for) Scantronic 9651PD-41 Grade 2 8 zone Panel with Keypad

larger image

Obsolete

Alternative Click Here

The new 9651PD from Scantronic brings this hugely popular product right up to date with PD6662:2010 compliance at Grade 2X. The new design has enabled a reduction in the panel power consumption by an amazing 70%.

9651PD-41 and 9651PD-43

Compliant to PD6662:2010 at grade 2X
Power consumption cut by 70% to just 40mA quiescent
Simplified user interface and installer menus
Full-cover lid for improved tamper protection

Specifications

Model	Description
Compliance	PD6662:2010, EN50131-1:2006 and A1:2009 Grade 2X and environmental class II, EN50131-3:2009, EN50131-6:2008
Zones	8 FSL Zones or 8 CC with global tamper
Panel	09651PD-41: Supplied with 09941EN non prox keypad. 09651PD-43: Supplied with 09943EN prox keypad
Keypads	Accepts up to four wired keypads
Proximity Reader	09943EN keypads have built in prox reader
Display	2 * 16 character LCD display
Setting Options	Full set and 3 parts sets
Event Log	350 Events
Codes	50 User codes can be 4 digit pin or proximity tag
Internal Sounder	Supports 1 * 16 Ω speaker
Outputs	3 programmable outputs
Remote Communications	None built in, can connect speech diallers from the SD range
Power Supply	Conforms to EN50131-6:2008 type A power supply. Rated output of 1A of which 800mA is available for system power
Battery	Accepts a 12V standby battery 7Ah rechargeable lead acid gel type (recommended)
Dimensions	240 x 250 x 90 mm HxWxD (Panel)
Weight	2.85 kg (without stand-by batteries) (Panel)
Temperature Range	Environmental class 2 (-10°C to 55°C @ 75% RH)
