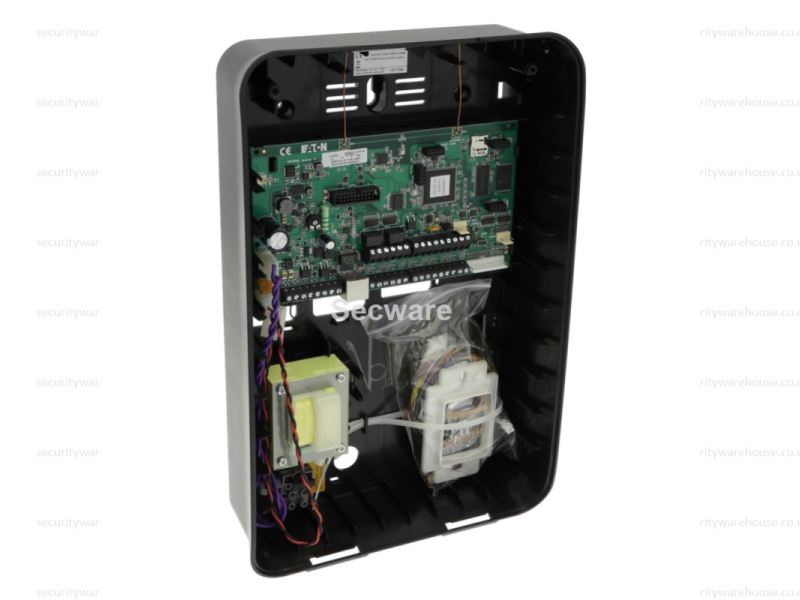

Eaton 40 Zone Hybrid Panel with KEY-KPZ Keypad

The i-on40H is a 40-zone hybrid (wireless and/or wired) control panel, which is expandable to 80 zones. It is ideal for installers who prefer a radio or hybrid solution and is highly versatile, being both backward and forward compatible.

Due to this, it is suitable for larger floor plans and properties with outbuildings that require detectors, sounders and cameras to be located far away from the burglar alarm panel.

SecureConnect™ enabled out of the box, the i-on40H offers smart security management and straightforward configuration using a web browser at no extra cost. It is also compatible with Eaton's full range of radio peripherals and plug on communicators.

TECHNICAL SPECIFICATIONS

Compliance:	EN50131-1:2006 + A1:2009 Grade 2 and environmental class II, EN50131-3:2009, EN50131-6:2008, BS8243:2010, PD6662:2017
Zones:	30 Radio and 10 wired on board, expandable to 80, all fully programmable
Partitions:	4 independent partitions each with a part set or full set and three-part sets
Users:	50 user codes, 4 digit PIN number, proximity, remote control or radio panic button
Wired keypads:	The ability to add up to four wired keypads
Event log:	1000 events; 750 mandatory events and 250 non-mandatory
Outputs:	One programmable relay outputs One 500mA open collector programmable outputs 12 low-current outputs for plug-by communicators 10 radio outputs
Bus Devices:	Accepts up to 20 bus devices (keypads, expanders and power supplies)
Internal Sounder:	One independently controlled 16 Ω speaker 4 internal radio sounders
External Sirens:	Dedicated Siren and Strobe open collector outputs 4 External Radio Sirens
Remote Communications:	SIA IP via built-in Ethernet port Email and images via built-in Ethernet port Footprint for connection of a range of alarm communications modules as described below
Visual Verification:	Up to 4 IP cameras
Power Supply:	Conforms to EN50131-6:2008 Type A power supply, rated power output 1.0A. 650mA is available for auxiliary power
Configurations Options:	Eaton Downloader via USB, IP or plug-on comms module, web browser via built-in Ethernet port
Battery:	Accepts a 12v standby battery up to 7Ah rechargeable lead acid, gel type
Dimensions:	End station: 384 x 245 x 94mm
Weight:	End station: 2.2kg
Temperature Range:	Environmental class II. Tested -10°C to 55°C @ 93% RH
