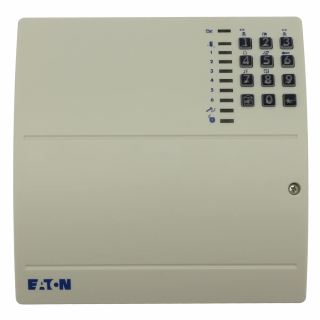

Eaton Scantronic 9448 Wired 7 zone control panel

9448 Wired 7 zone control panel

Easy to install, saving you time and money Simple wiring configuration. Easy to programme. Upgradeable to a communicating system for extra security Option to add SD1, TSD2 and SD-GSM speech dialler to create a communicating system. Easy to operate Each system has full and part set facilities, the ability to change access codes and optional remote keypads to give a high level of security and total peace of mind. Designed to offer exceptional value for money

At a glance

Six zones plus One dedicated entry/exit zone
Global tamper
Bell, strobe and one programmable output
Ten event log
Day system status LED
Communication output

Technical Specification

Product code	9448EUR-90
Description	7 zone wired panel, ungraded
Wired external sounders	1
Event log	10
Power supply	500mA
Number of wired keypads	2
Connection	Wired
Operating temperature (°C)	-10°C to +55°C
Display	10 LED indicators on the control panel, including day (unset) LED
Outputs	Bell and strobe 500mA open collector. 1 programmable 100mA as PIR set latch or shock sensor reset
Dimensions	Control panel (H x W x D): 212 x 212 x 68mm
