The EURO 76 is a versatile hybrid control panel, offering 76 zones alongside effective monitoring through PSTN, GSM, and IP methods of communication. Designed to cater to diverse security requirements, it provides flexible options for both large and small installations, ensuring suitability for Grade 2 and 3 setups.
-
Hybrid 76 zone, 6 area control panel
-
Up to 75 unique users, 32 maximum wireless keyfobs
-
Code, pin, remote keyfob, and app arming/disarming options
Adaptable and flexible
With its extensive selection of wired and wireless security and life safety devices, the EURO 76 provides an all-encompassing security solution for any property .
App controlled security
Conveniently manage the system, monitor its status, and receive personalised push notifications from any location through our user-friendly smart device application, HomeControl2.0.
Programming choices
The EURO 76 can be programmed via keypad or through our InSite desktop application, offering you smooth menu navigation for different setup options.
Effortless integration
With the addition of a wireless zone expander, the EURO 76 is fully compatible with all our wireless devices. Seamlessly connect these devices with our user-friendly, one-button learning feature to simplify device placement during installation through SSI, combining ITDC for efficient power management.
Ready for IP Integration
The EURO 76 adeptly tackles the challenges arising from the PSTN switch-off by seamlessly integrating with IP-based alternatives such as GPRS, Wi-Fi, and LAN modules, solving any PSTN-related issues.
Simplified IT Configuration
By connecting through a cloud server, the EURO 76 eliminates the necessity for complex on-site IP or network setup. Simply connect through PyronixCloud.com for easy access.
InSite compatibility
With InSite UDL software, you can save time and money with remote programming and diagnostics. Additionally, the software facilitates for one of the compulsory annual system maintenance checks, using ARM (Automatic Remote Maintenance).
What’s in the box

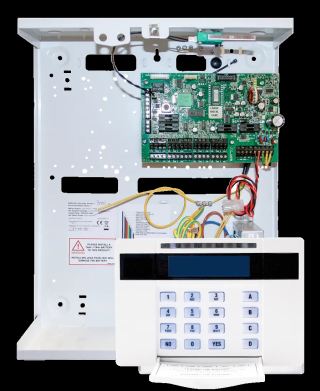

EURO 76 Zone Hybrid Control Panel
Contemporary Keypad
Quick Start Guide
User Guide
Control panel technical characteristics
|
Two-way wireless technology
|
Requires EURO-ZEM32-WE
|
|
Independent areas
|
6
|
|
Tamper protection
|
Front and back
|
|
LCD keypad with integrated prox reader
|
EUR-064
|
|
User codes and prox tags
|
75
|
|
Guard codes
|
10
|
|
Reporting formats
|
Contact ID (standard and IP) | Fast Format (standard and IP) | SIA3 (standard and IP)
|
|
System logs
|
1250 events (EEPROM)
|
|
Areas
|
6
|
Inputs & outputs
|
Input type
|
Double pole, DEOL and 3EOL | Wireless with additional EURO-ZEM32-WE
|
|
Two-way wireless inputs
|
64 (with 2 x EURO-ZEM32-WE)
|
|
Onboard wired inputs
|
8 (10 including keypad inputs)
|
|
Total inputs
|
76
|
|
Outputs on board
|
1 relay | 4 transistor | 10 low power ATE outputs
|
|
Two-Way Wireless Keypads
|
4 (requires EURO-ZEM32-WE)
|
|
Output modules
|
2
|
|
Wired automation outputs
|
30
|
|
Maximum outputs
|
85
|
|
Two-way wireless keyfobs
|
32 (requires EURO-ZEM32-WE)
|
|
Two-way wireless sirens
|
2 (requires EURO-ZEM32-WE)
|
|
Wired keypads
|
6
|
|
Readers and entry control
|
5
|
Communications and modems
|
GPRS modem (optional)
|
Yes
|
|
GSM modem (optional)
|
Yes
|
|
PSTN modem (optional)
|
Yes
|
|
LAN modem (optional)
|
Yes
|
|
WiFi modem (optional)
|
Yes
|
|
Supports PyronixCloud & HomeControl+ App
|
Yes
|
|
SMS numbers
|
10
|
|
Remote speaker and microphone
|
16 ohms speaker wired to endstation
|
|
Event Signalling to Insite
|
Yes
|
|
ARC compatibility
|
Yes
|
|
Compatible with UDL software
|
Yes
|
Environmental and operating features
|
Storage temperature
|
-20C to +60C
|
|
Certified operating temperature
|
-10C to +40C
|
|
Physical dimensions (H x W x D)
|
PCB 110 x 170 x 40 mm | Small case 297 x 250 x 82 mm | Large case 390 x 305 x 100 mm
|
|
Weight
|
Small case 4.8kg inc. battery | Large case 11.5kg inc. battery
|
Electrical & battery
|
Battery capacity
|
Small case 7Ah maximum | Large case 17Ah maximum
|
|
Battery voltage
|
~13.8VDC
|
|
Battery low voltage protection
|
~10.5VDC
|
|
Low battery threshold
|
~10.5VDC
|
|
Recharge time
|
<24 hours
|
|
Mains supply
|
~230VAC at 50Hz | -15% +10 %
|
|
Quiescent current consumption
|
80mA (PCB)
|
|
Transformer
|
Power Supply Type A.
|
|
Fuse (battery)
|
T 1.5A anti-surge slow blow 250V
|
|
Fuse (12v outlets)
|
F800mA quick blow 250V
|
|
Fuse (mains)
|
T500mA H anti-surge slow blow 250V
|
|
Fuse (RS485 data BUS)
|
F800mA quick blow 250V
|
|
Relay outputs
|
3A, max 30V
|
Resistance (wired inputs)
|
Normal
|
1k4 to 2k9
|
|
Intruder
|
4k2 to 7k8
|
|
Tamper
|
<1k4 or >22k
|
|
Fault
|
8k to 11k3
|
|
Masking
|
11k6 to 22k
|
Certifications and warranty
|
Security Grade
|
Small case 2 | Large case 3
|
|
Environmental class
|
II
|
|
EN Certificate
|
PD6662:2017+IA501:2015 | EN50131-1:2008+A1:2009 | EN50131-3:2009
|
|
Warranty
|
2 Years
|
