Videx Flush VR digital panel with wide angled video & bezel BBox

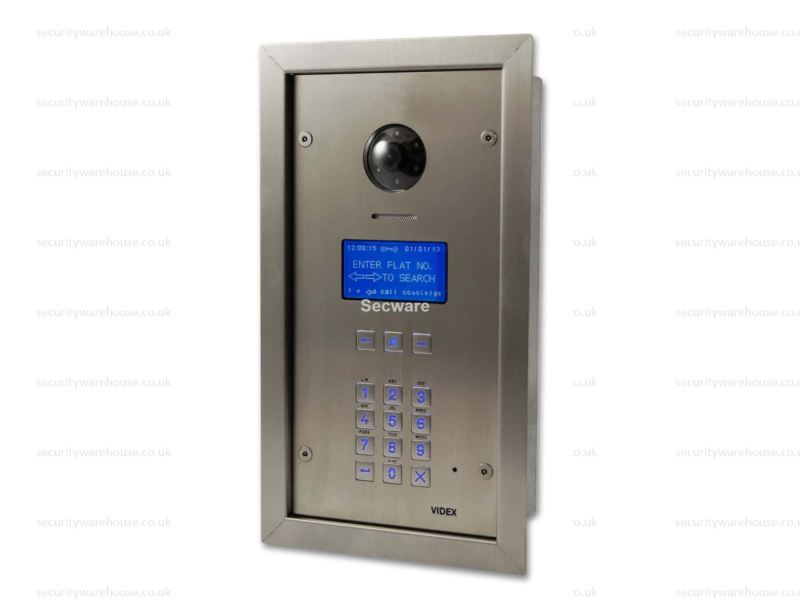

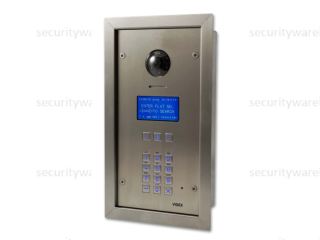

VIDEX 4212RV/UK FLUSH VR DIGITAL PANEL WITH WIDE ANGLED VIDEO & BEZEL BACK BOX (SCROLL)

The 4212 series vandal resistant digital panel range compliments the  Videx VX2200 digital system (2 wire bus for audio, 6 wire bus for video).

The panels are manufactured from 2.5mm thick brushed stainless steel and come with the option of the alpha-numeric keypad (A-F)  or the name search and scroll facility keypad (both back lit).

Surface and flush back box mounting options are available.

All panels incorporate features from previous digital panels (storing up to 998 users, allowing each user to have a unique 3-6 digit access code, trade facility, multiple text language display and speech board annunciation) and also include additional features never seen before on the VX2200 digital system.

All models include a larger 128x64 pixel graphical LCD display which is back lit blue providing clear visual messages for the user of the system.

Also integrated into the panel is a proximity reader allowing a number of proximity key fobs to be stored and used individually or in combination with the access code. Additional interfaces include a Wiegand output (allowing connection to third party access control systems that also use this protocol) plus two serial interfaces (USB and RS485)  which both allow for panel programming via VX2200 software and event logging.

The video panels have a built-in colour CCD wide angle day/night camera with IR illumination LED’s that provide the best quality picture in any lighting condition and a viewing angle of 170°. The camera can be set to work with either composite video (coax)  or balanced video (non-coax twisted pair).

With an increased memory capacity compared to previous models the panels can store up to 998 users, up to 2800 access codes, up to 2800 proximity key fobs and up to 4000 events
