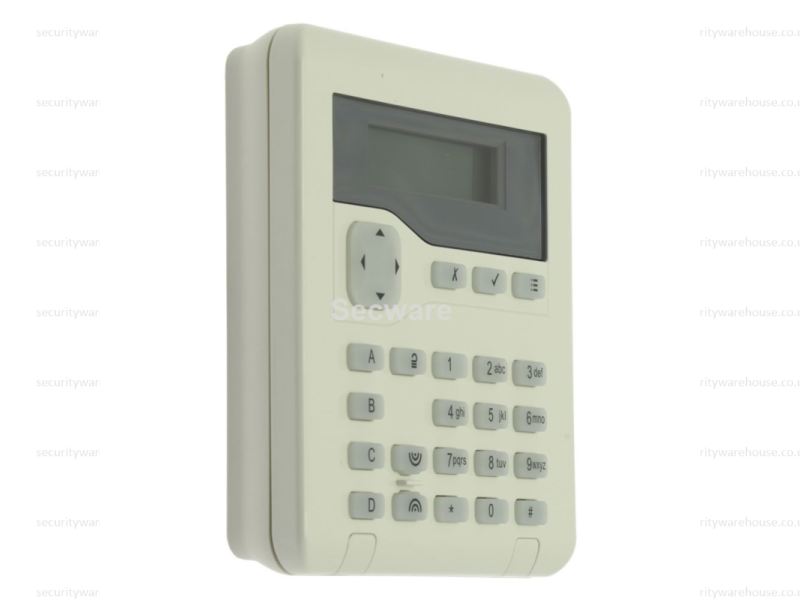

Eaton Surface Mounted Lcd Keypad

Description

As well as having a modern, small and discreet design the KEY-K01, KEY-KP01 and KEY-KPZ01 keypads can be customised to your brand using inserts via our online print-on-demand service. The three keypads have a choice of prox, non-prox or prox with zones.

The prox keypads have connections for an external prox reader to be connected in addition to the internal prox. To add greater flexibility to the KEY-KPZ01 you can select the option of having two zones on board for an even faster connection of zones.

Specifications

 KEY-K01KEY-KP01KEY-KPZ01
Description

A keypad which includes:

a navigation key for easy access to the user and installer menus

a status LED that can be turned on or off from within the keypad menu.

A keypad which includes:

a navigation key for easy access to the user and installer menus.

a status LED that can be turned on or off from within the keypad menu.

an internal prox reader

connections for an external prox reader(KEY-EP).

A keypad which includes:

a navigation key for easy access to the user and installer menus

a status LED that can be turned on or off from within the keypad menu.

an internal prox reader

connections for an external prox reader (KEY-EP)

connections for two zones and a programmable output.

CompliancePD6662:
2010
PD6662:
2010
PD6662:
2010
Zones002
Built in prox NoYesYes
Dimensions
(HxWxD)
128x128
x29mm
128x128
x29mm
128x128
x29mm
Weight0.2Kg 0.2Kg 0.2Kg





Compatible
products
i-on16, i-on40, i-on30EX, i-on30EXD, i-on30EXL, i-on30EXDL, i-on50EX, i-on50EXD, i-on160, Menvier30, Menvier40, Menvier100 and Menvier300





Customisable
insert
Yes, available via our print-on-demand service launching end of September





Panel software requirementV4.03V4.03V4.03



Eaton Was Scantronic

  • Model: KEY-K01
  • Shipping Weight: 0.5 kgs
  • Manufactured by: Eaton Security
Ask a Question

£52.82 Ex VAT
