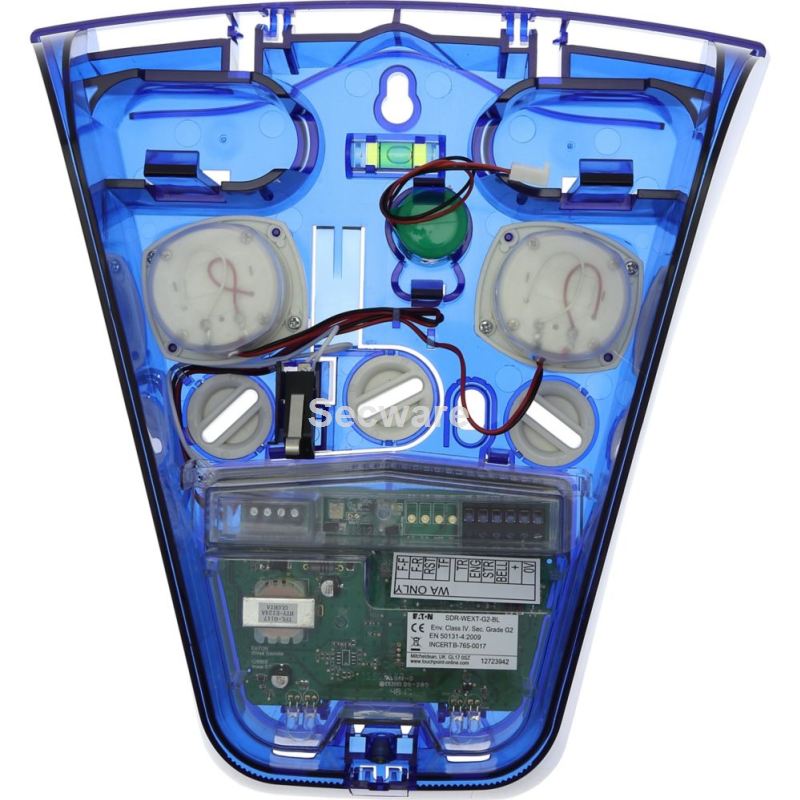

Eaton External Sounder Wired Backplate G2 Blue Lens No Cover

For the cover please order [SDR-CV]

A capsule range of external sounders, in three colours, with options for radio, wired and decoy.

Designed for use with i-on and Menvier, new and legacy 868MHz systems.
Wired variants also compatible with third-party control units

Engineer-friendly:
a self-supporting lid, built-in spirit-level and revolving fixing holes for ease of installation including on uneven surfaces

High-power comfort LEDs and LED strobes:
provides reassurance for the user

Common enclosure for entire range:
impact-resistant polycarbonate construction in a choice of 3 colours: blue, amber and red

• Selectable between Self Contained Bell (SCB) or Self Actuated Bell (SAB) modes:
- In SCB mode the sounder, in alarm condition, draws its power from its integral internal battery
- In SAB mode the sounder is driven from the control panel
- Low-volume maintenance mode
- Self-supporting lid
- Built-in spirit level
• Sound output 100 dB at 1 meter
• Low current consumption (35mA and 225mA in-alarm current)
• Lid and rear tamper detection
• Selectable cut-off timer
• Choice of siren tones
• Compliance: EN50131-4 Grade: Grade 2
(SDR-WEXT-G2 and SDR-REXT-G2), or Grade 3
(SDR-WEXT-G3),PD6662:2010, EN50131-4:2009
